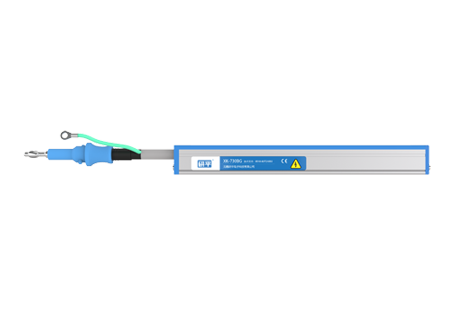

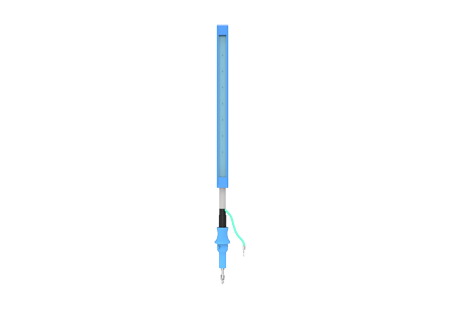

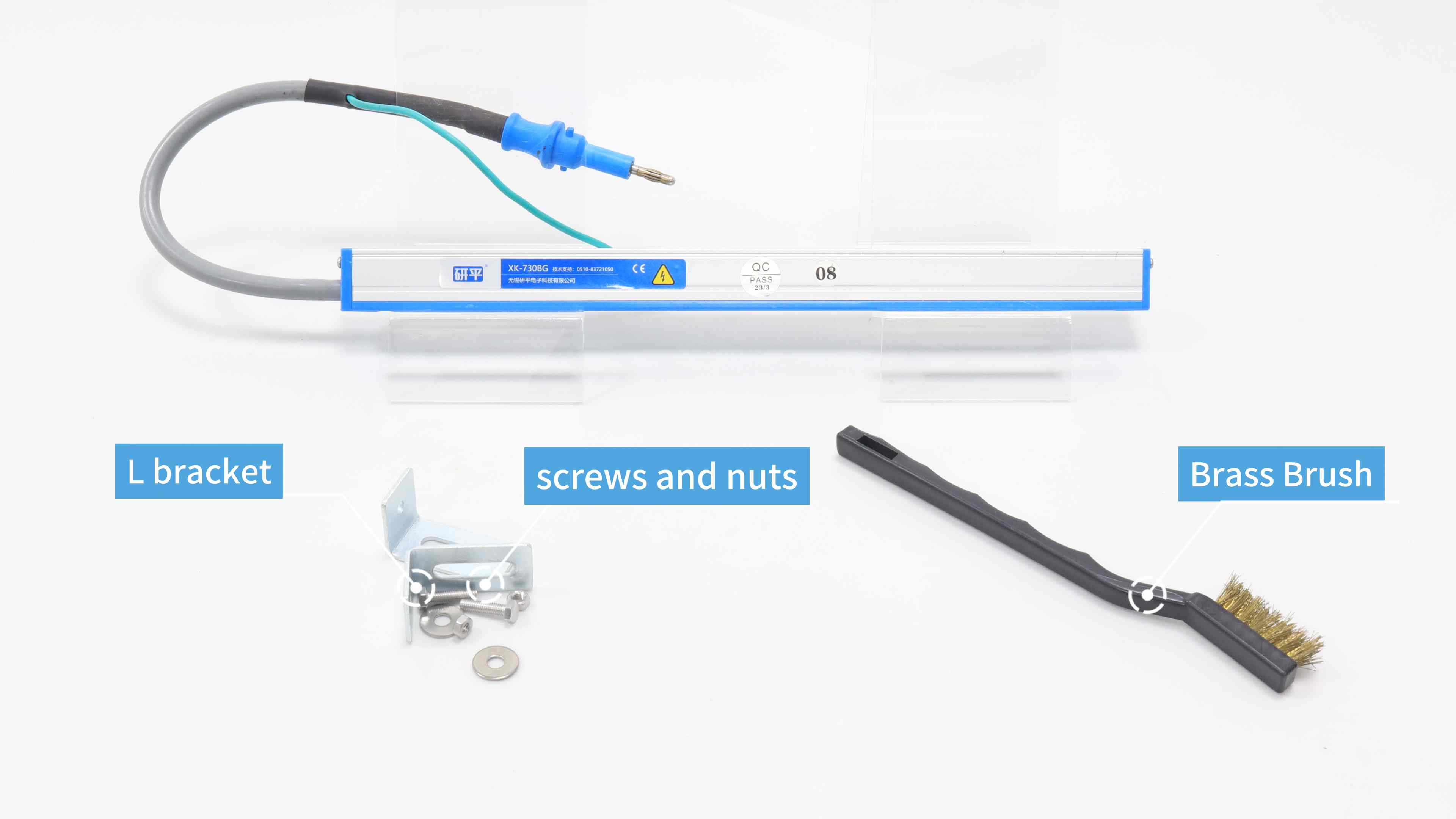

Compact AC Coupled Static Eliminator Bar

XK-730BG
Compact design, suitable for installation in narrow spaces

Application Field

  • Functional Film Industry

  • Washing Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1     Tungsten electrode has a longer service life

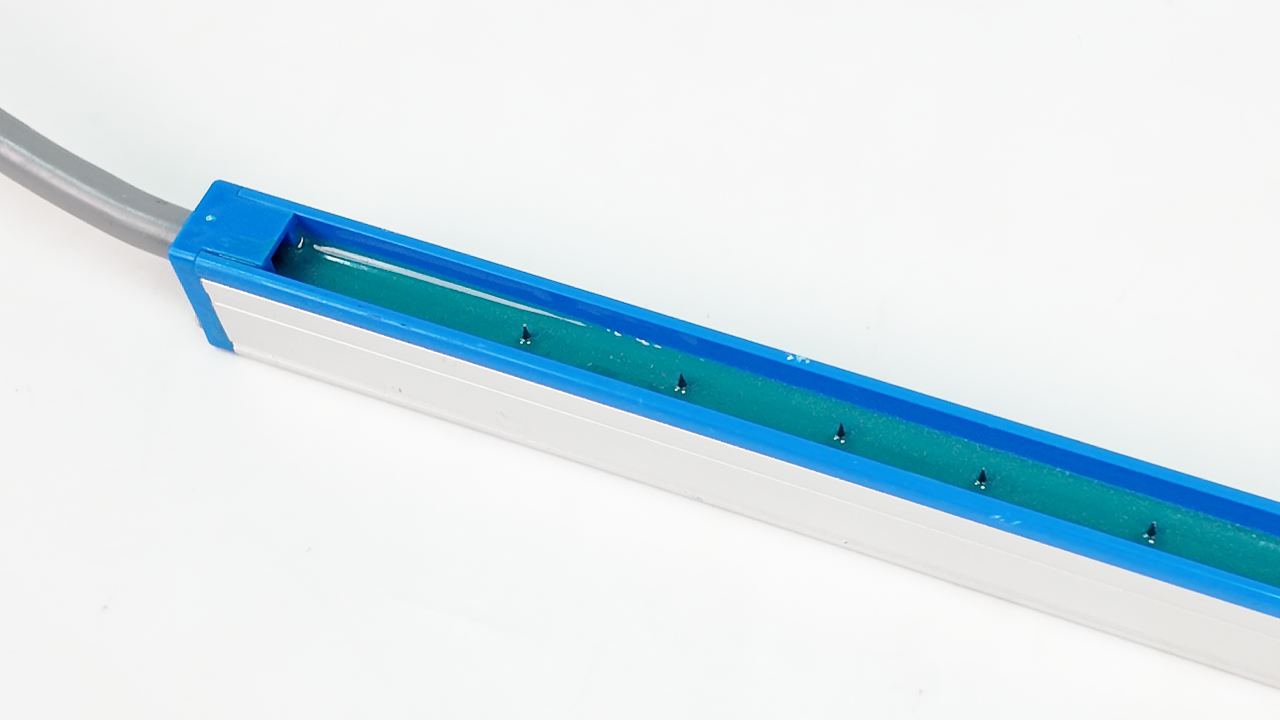

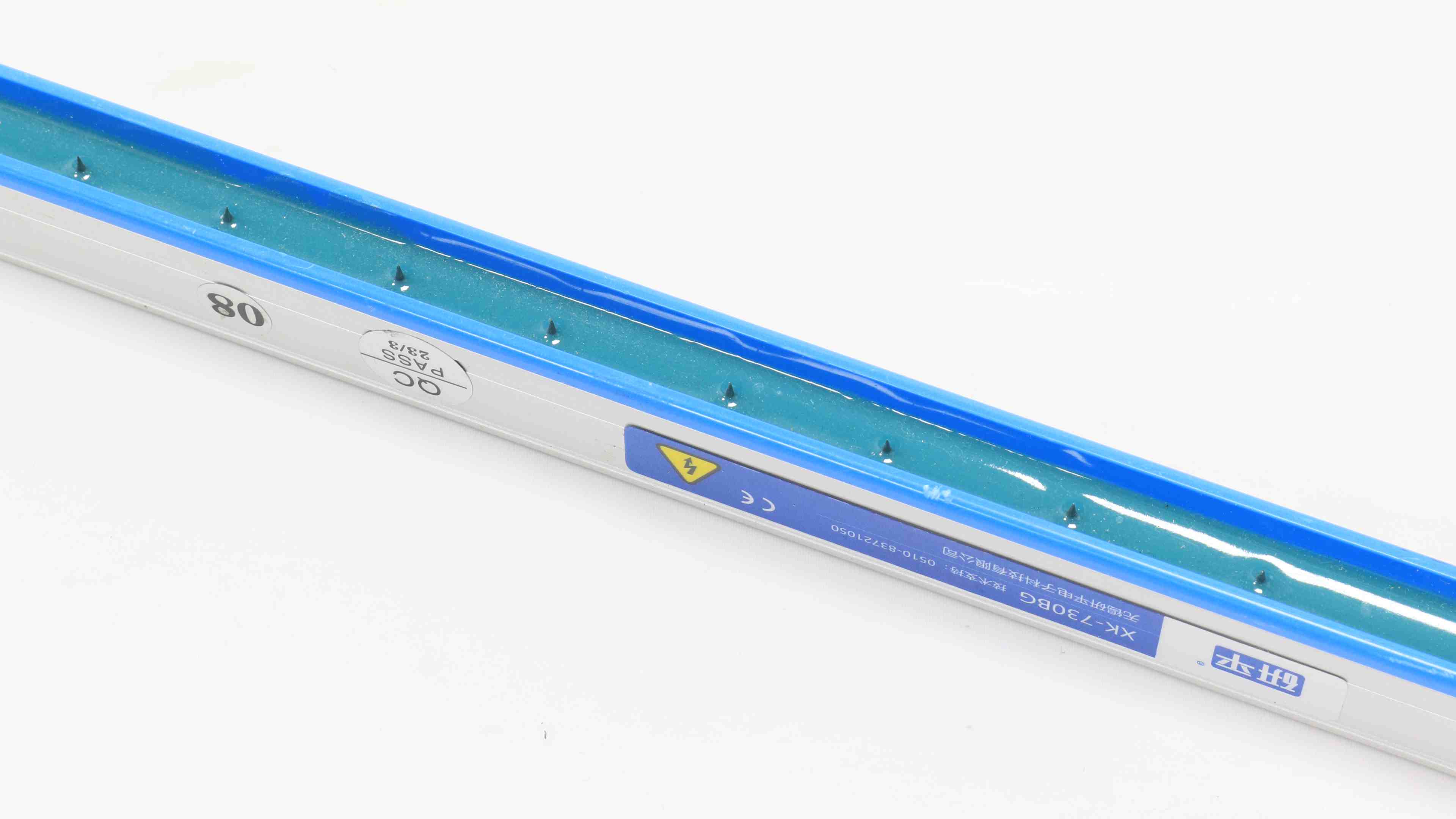

2     Built-in protection for discharge needles, and electrodes are touchable


Performance Parameter

  • parameter/Version
    XK-730BG
  • Input voltage
    5KV-6KV
  • Ion emission mode
    Coupled type
  • Ion balance
    ≤±100V
  • Charge elimination speed
    0.1S(≤50mm)
  • Charge elimination distance
    ≤80mm
  • Total length range
    100-3300mm
  • Effective range
    50-3220mm

Working Mode


Product Size
