Application Field
-
Lithium Battery Industry
-
Electronics Industry

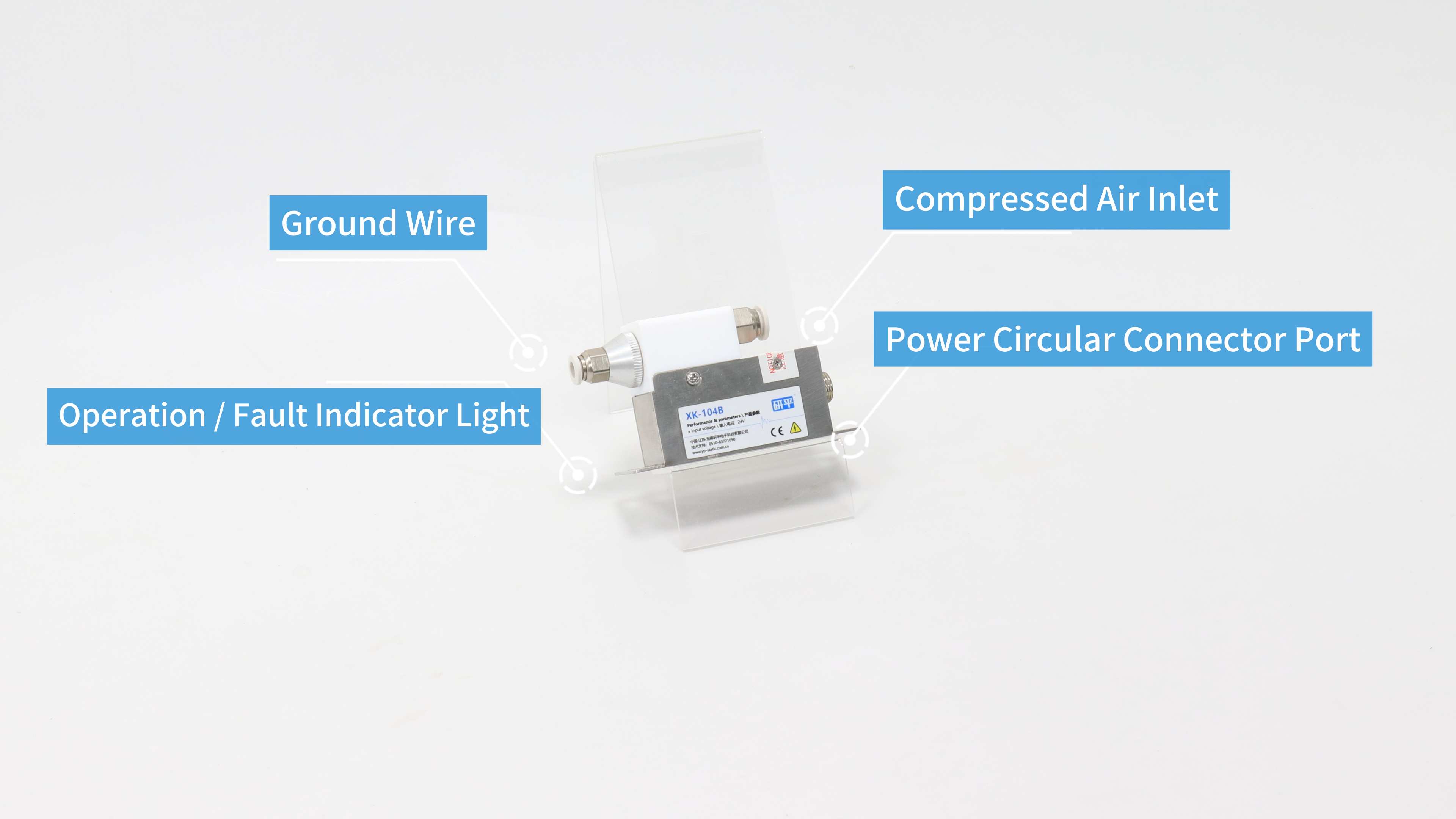

Product Characteristics
1 Overall length: 109mm, suitable for various narrow manufacturing spaces.
2 Standard spray head for short-distance static elimination.

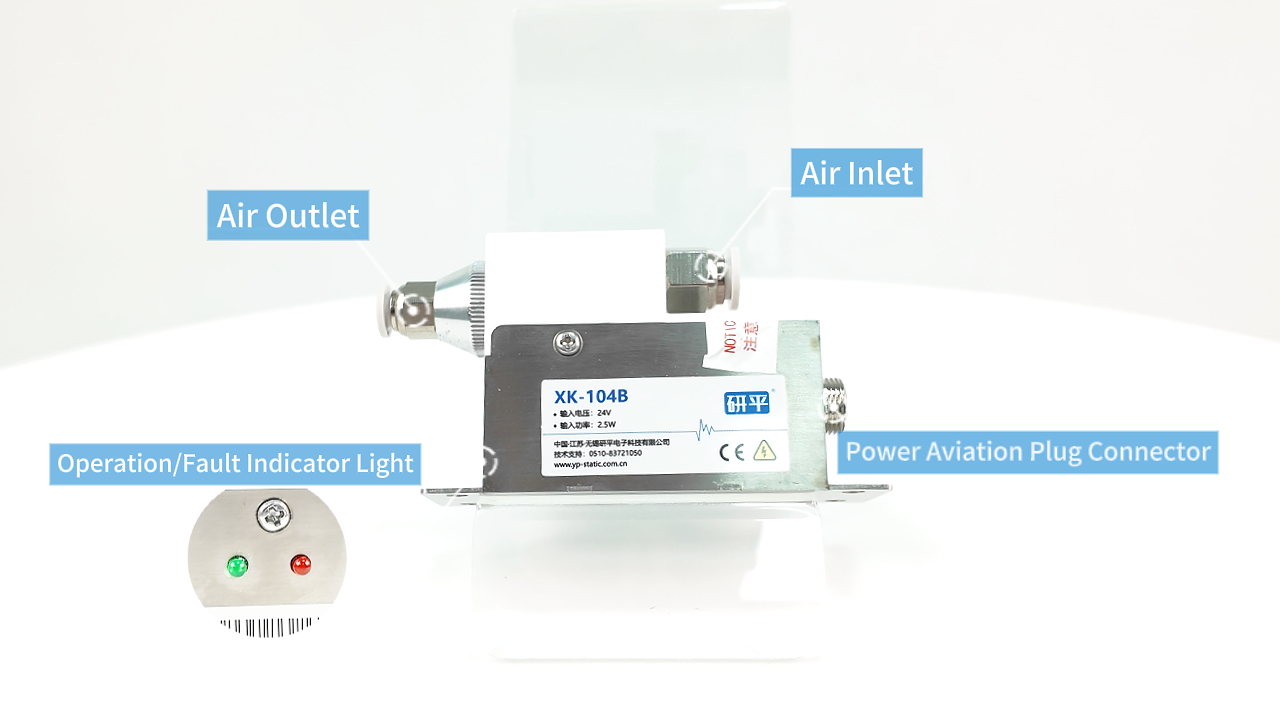

3 LED indicator light with high-voltage abnormal alarm function.
Performance Parameter
- Parameter ModelXK-104B
- Ion Generation MethodCorona Discharge
- Output VoltageNeedle Tip Voltage ＞2.8KV
- Ion Balance Range≤±35V
- Elimination Capability＜4s（500MM）
- Installation Distance10~500mm（0.2pa）
- Rated Power Supply VoltageDC24V~36V±10%
- Rated Output Power＜2.5W
- Rated Overvoltage CategoryⅠ
- Rated Pollution Degree2
- Main FunctionShort-Circuit Discharge Alarm
- Airway Connection PortAir Inlet Outer Diameter 8mm/Air Outlet Outer Diameter 6mm
- Air Supply Pressure0.05MPa~0.5MPa（Recommended Air Pressure 0.2~0.3MPa）
- Electrode Needle MaterialTungsten Needle
- Main Unit MaterialStainless Steel + Teflon
- Ambient Temperature Adaptability-10℃~55℃
- Ambient Humidity Adaptability35～65％RH（No Condensation）
Working Mode

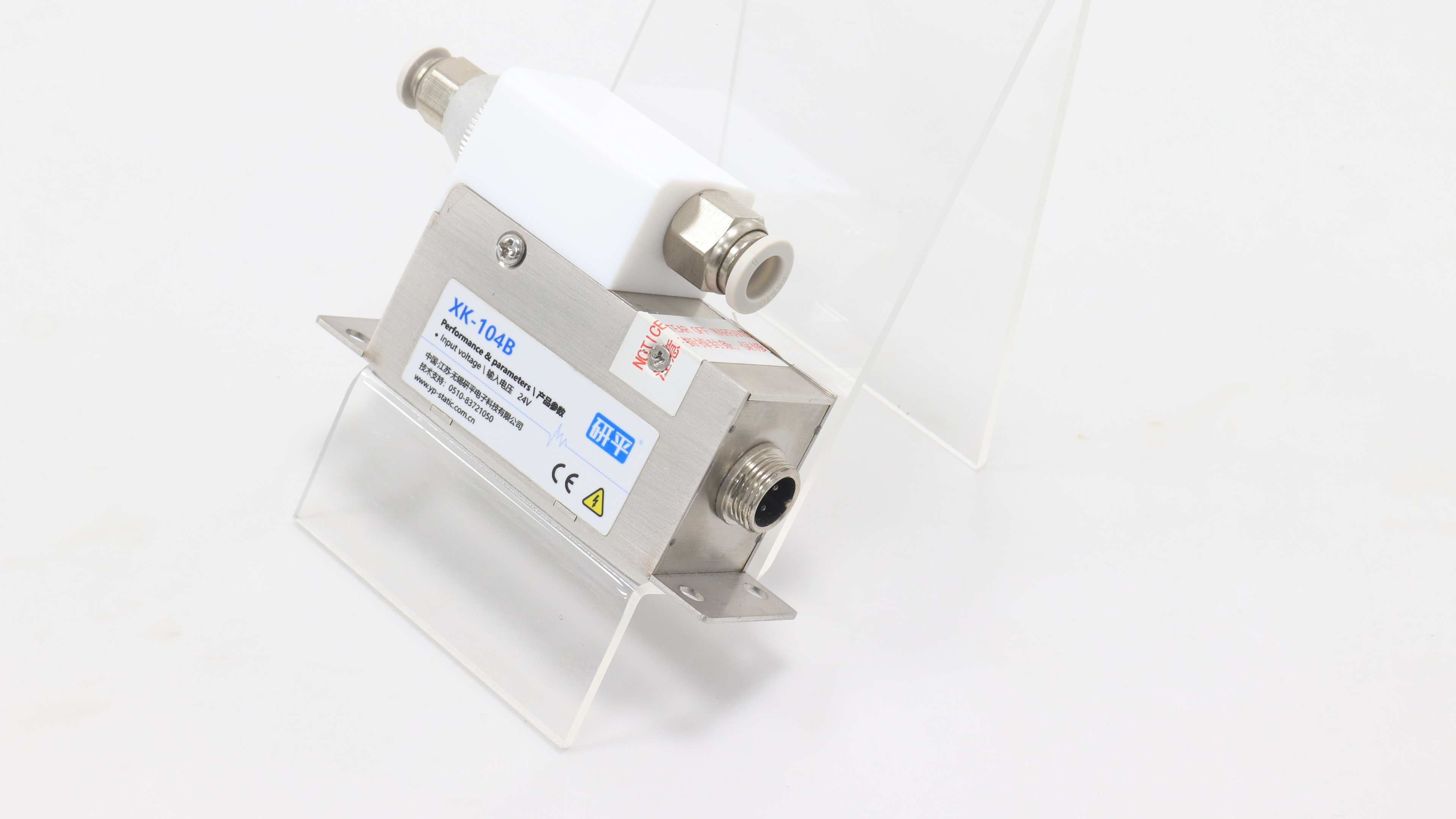

Product Size
