Application Field
-
Semiconductor Industry
-
Lithium Battery Industry
-
Electronics Industry
Product Characteristics

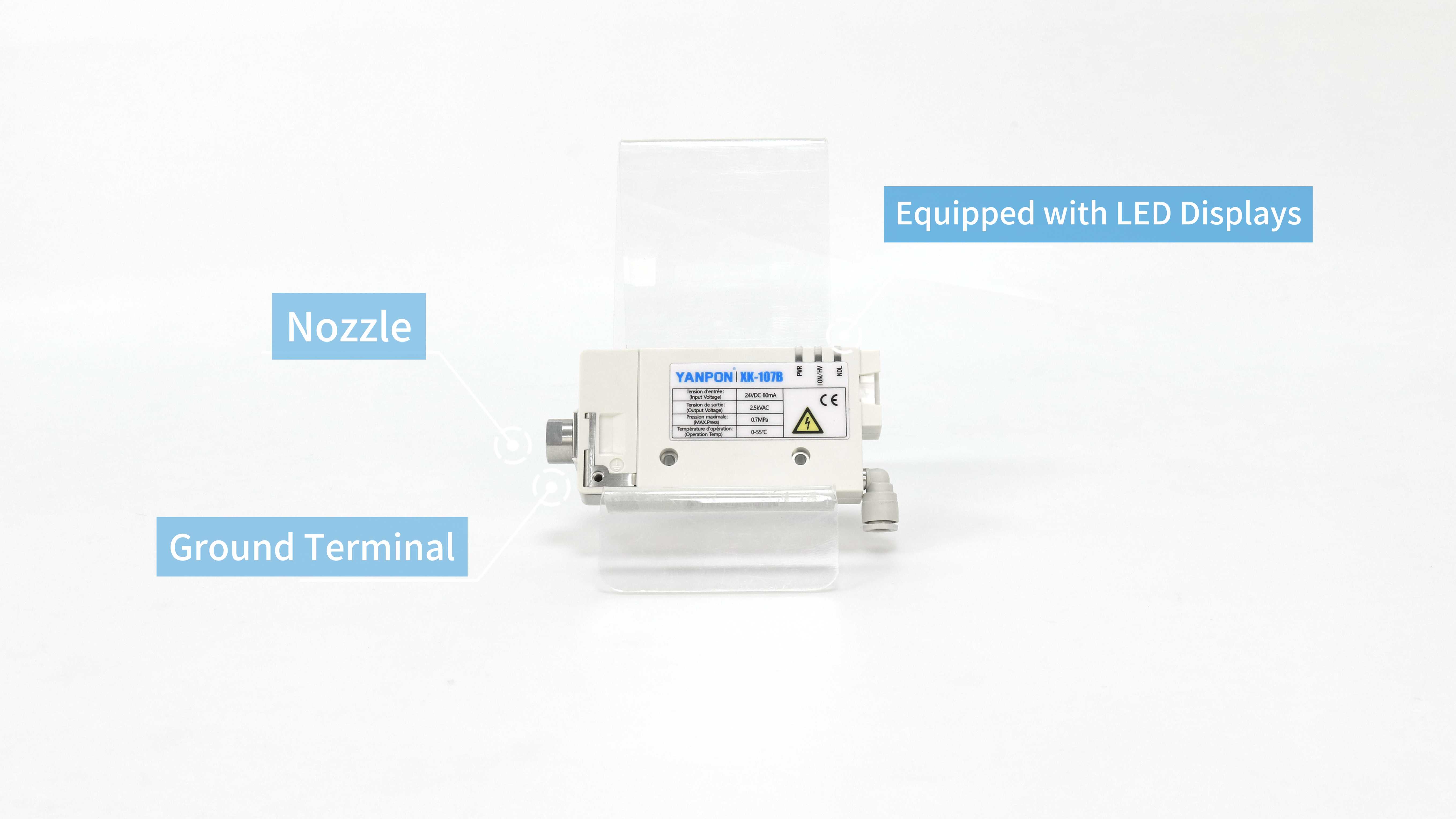

1 Ultra-compact integrated body, suitable for installation in narrow spaces.
2 Standard nozzle for short-distance static elimination.
3 Multiple air outlet modes, optional nozzles.
4 Supports external monitoring of function output for real-time grasp of working status.
5 Built-in short-circuit protection to avoid safety accidents such as equipment damage.
Performance Parameter
- Parameter ModelXK-107B
- Ion Generation MethodCorona Discharge Method
- Output Voltage ModePulsed AC Mode
- Output Voltage2.5KV AC
- Internal Thread Bare Machine Bias Voltage（Ion Balance）≤±5V（Optimal Effect）
- Internal Thread Piping Bias Voltage（Ion Balance）≤±5V（Optimal Effect）
- Gas Supply FluidAir（Clean and Dry Air）
- Gas Supply Pressure0.05MPa-0.7MPa
- Outer Diameter of Gas Supply Connection PipeΦ6
- Operating VoltageDC24V±10%
- Operating Current≤120mA
- Effective Elimination Range20-500mm
- Ambient Temperature（In Use, During Storage）0-55℃
- Ambient Humidity（In Use, During Storage）35-65％RH（No Condensation）
- Housing MaterialABS Stainless Steel
- Nozzle MaterialStainless Steel
- Electrode Needle MaterialTungsten
- Impact Resistance100m/s²

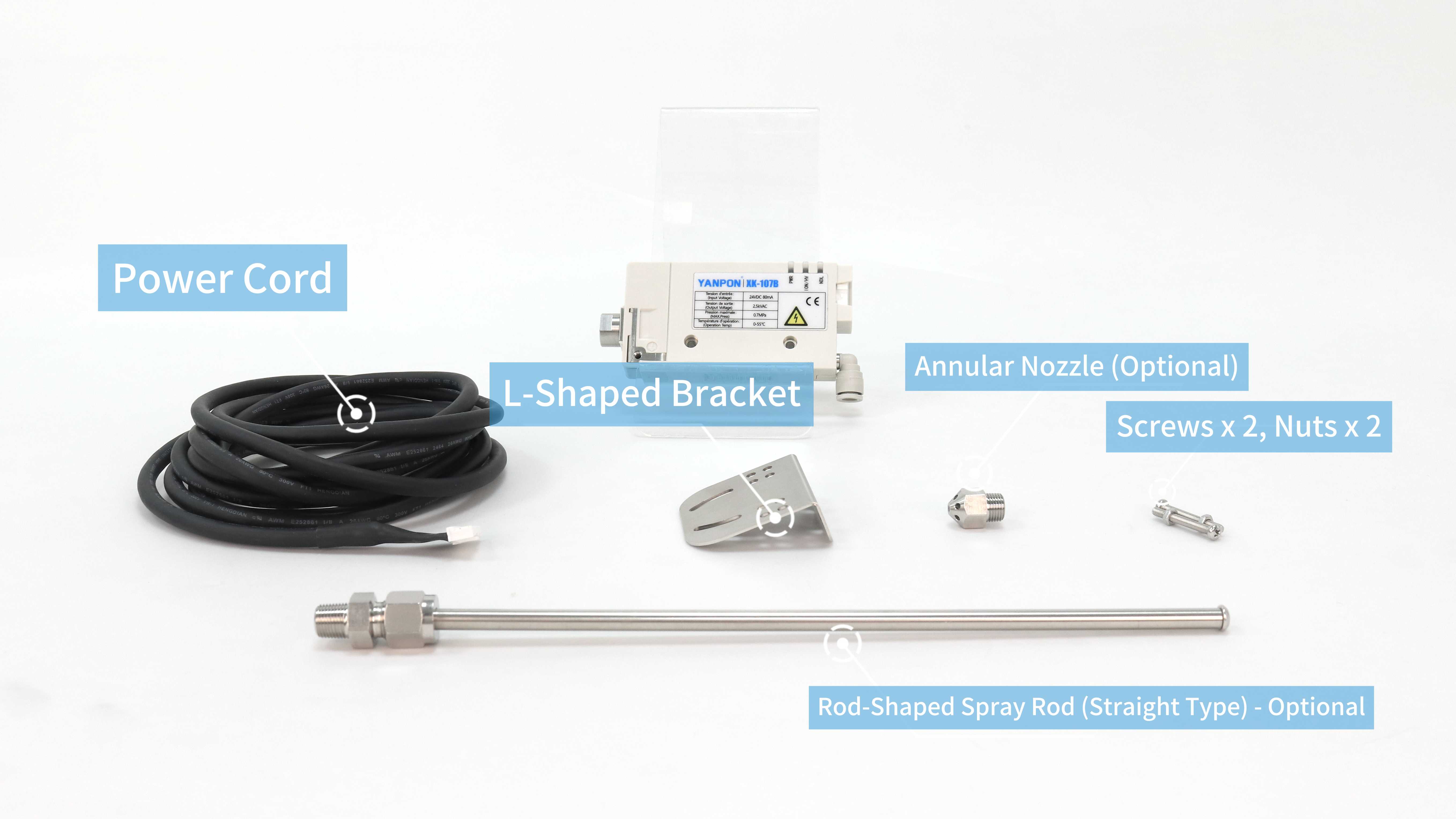

- Weight of Internal Thread Piping Bare Machine Body70g
- Nozzle Body Weight9.6g

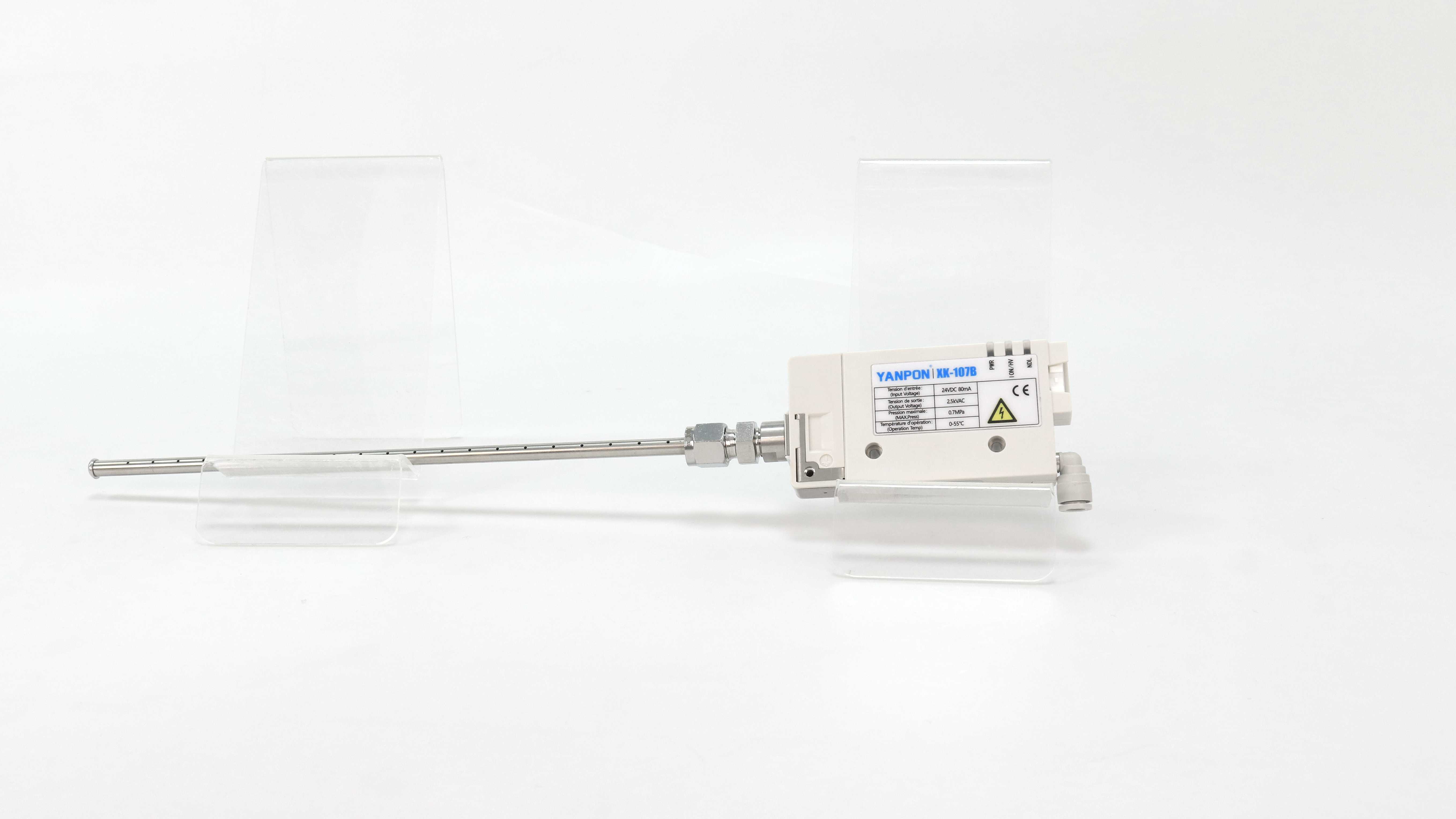

- Spray Rod Body Weight54g
- L-Type Bracket Weight19g
- Guide Rail Mounting Bracket（Single Unit）Weight37g
- Applicable Standards/DirectivesCE
Working Mode
Product Size
