Application Field
-
Functional Film Industry
-
Textile Industry
-
Soft Packaging Industry
Product Characteristics

1 Automatically monitors and adjusts the static elimination effect to ensure that the working environment always maintains the optimal static neutralization state
2 Easily copes with various long-distance static elimination needs
3 Built-in power supply with 36KV and 48W driving capacity

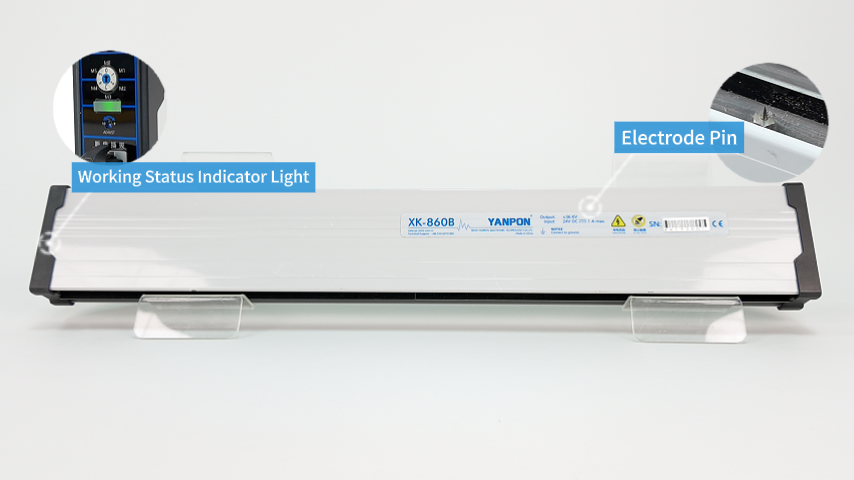

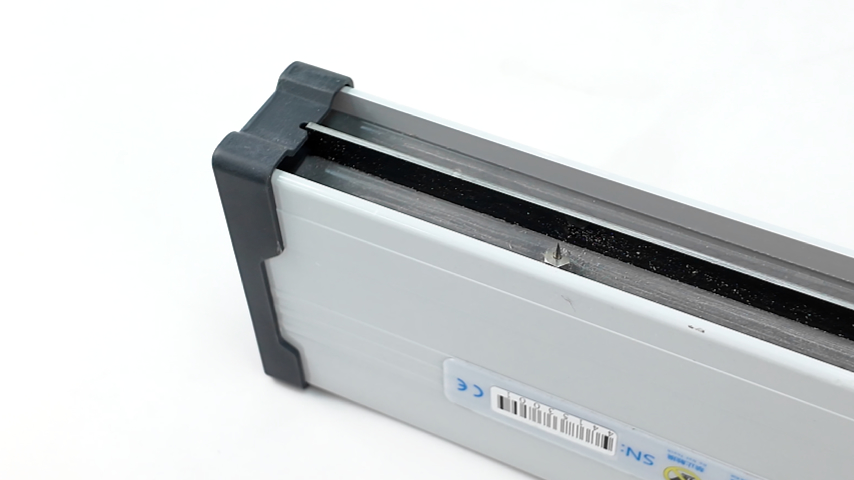

4 Replaceable electrode design with tungsten needle material improves the durability and service life of the equipment and reduces maintenance costs

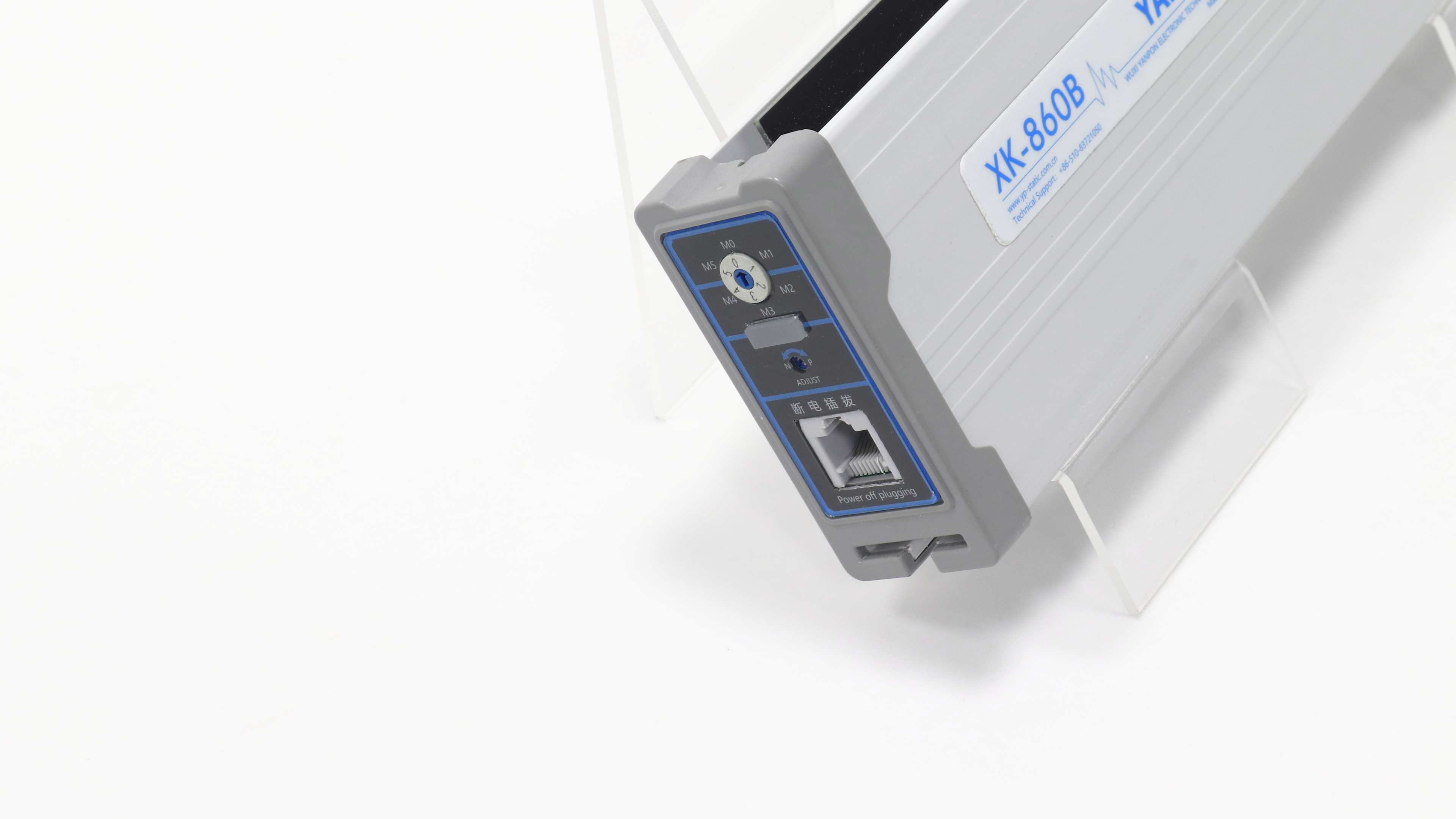

5 Provides 2 automatic modes and 3 manual modes, allowing users to flexibly select according to actual needs
6 100% coverage, with the total length being the effective length
Performance Parameter

- parameter/VersionXK-860B
- Input voltage24V±10%
- Incoming current<2A
- Input power<48W
- Working voltage±36KVDC
- Ion generation modeCorona discharge
- Emission electrodeTungsten needle
- Charge elimination range200-1500mm
- Static Elimination TimeMode 2 distance 0.6m <2s; Mode 1/4 distance 1m <5s; Mode 2/5 distance 1.5m <20s
- Operating temperature0-55℃
- Operating humidity35~70%RH(non-condensing)
- Shell materialPVC(flame retardant)
- FunctionsAdjustable charge elimination balance (intelligent + manual); Replaceable electrode pins; 8 working modes adjustable; Abnormal alarm; Maintenance warning; High voltage abnormal protection; Power supply abnormal protection
Working Mode

Product Size
