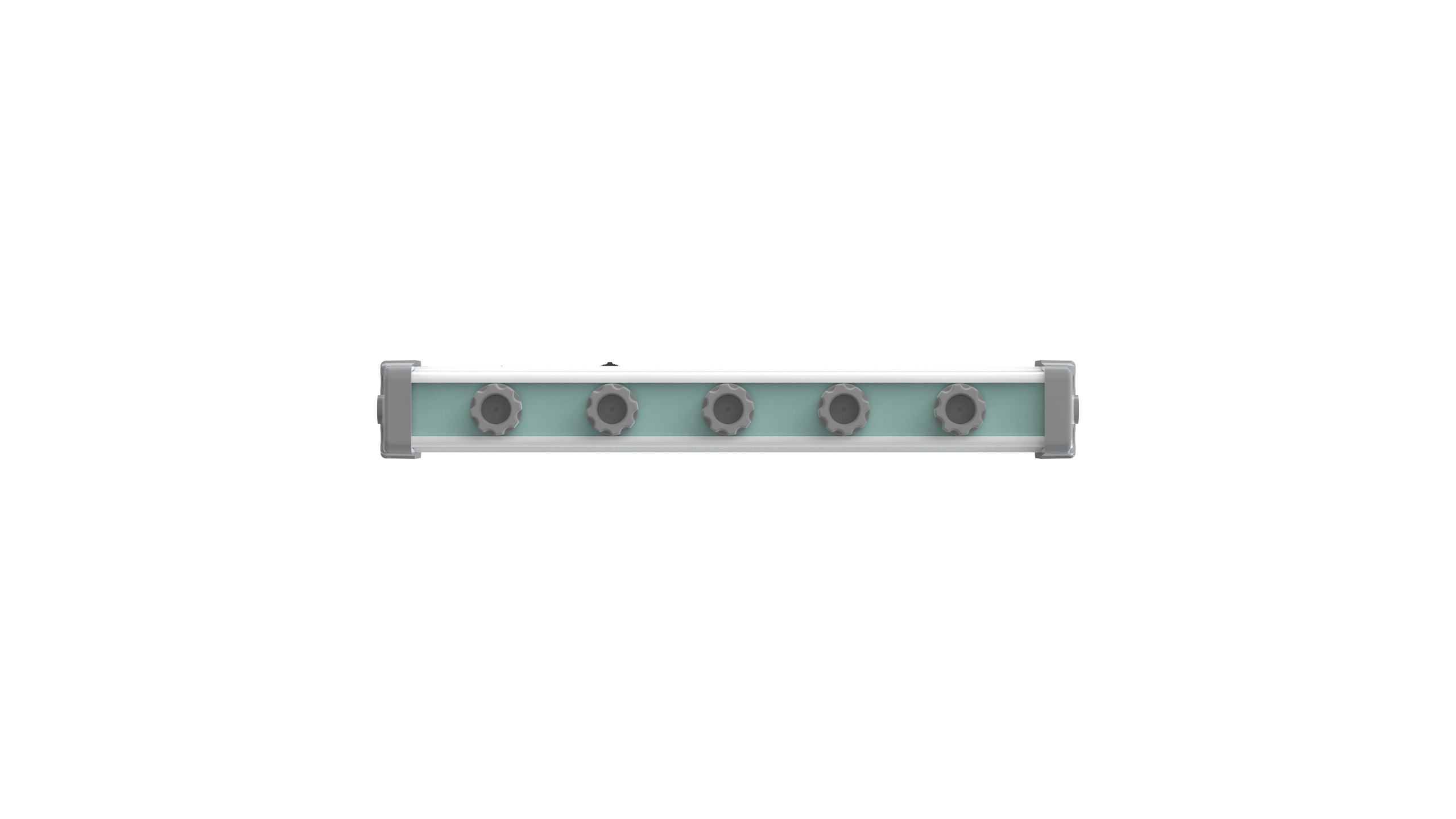

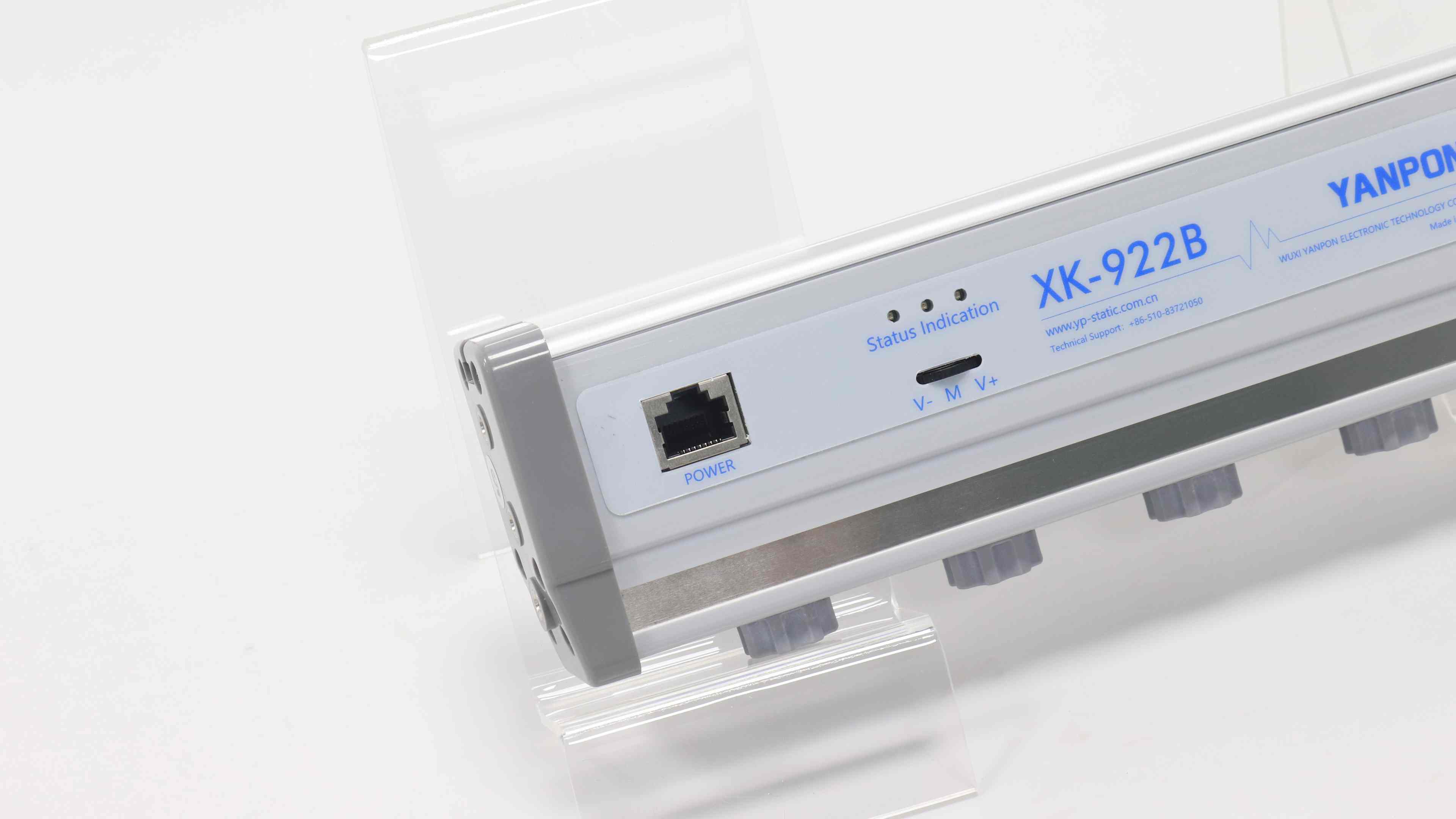

Intelligent DC Static Eliminator

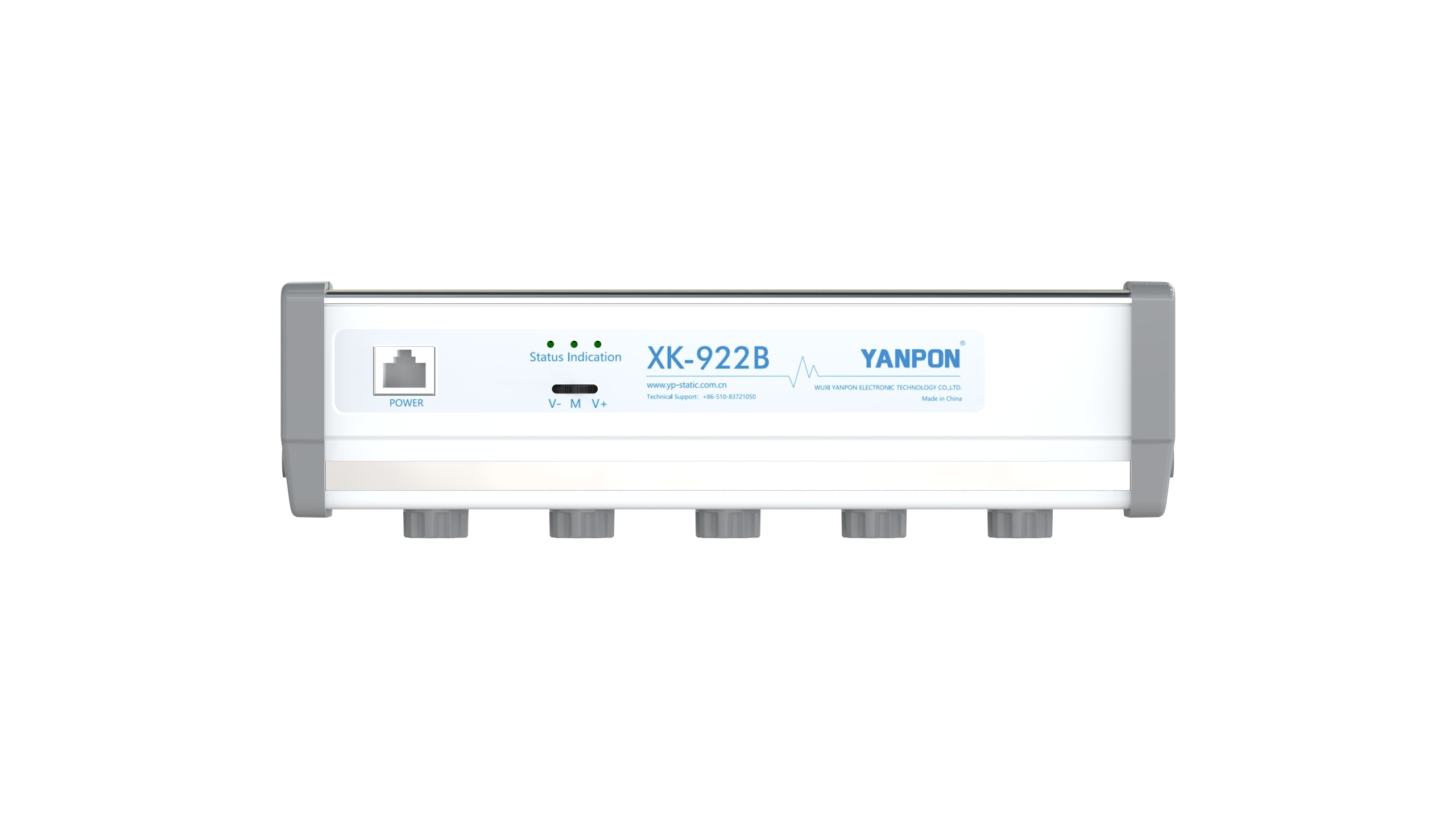

XK-922B
Ion balance within ±30V
Supports local and remote parameter adjustment for flexible operation

Application Field

  • Semiconductor Industry

  • Functional Film Industry

  • Lithium Battery Industry

  • Electronics Industry

  • Textile Industry

  • Soft Packaging Industry

  • Advertising Industry

Product Characteristics

1      Maintain ion balance within ±30V to ensure optimal static elimination effect.

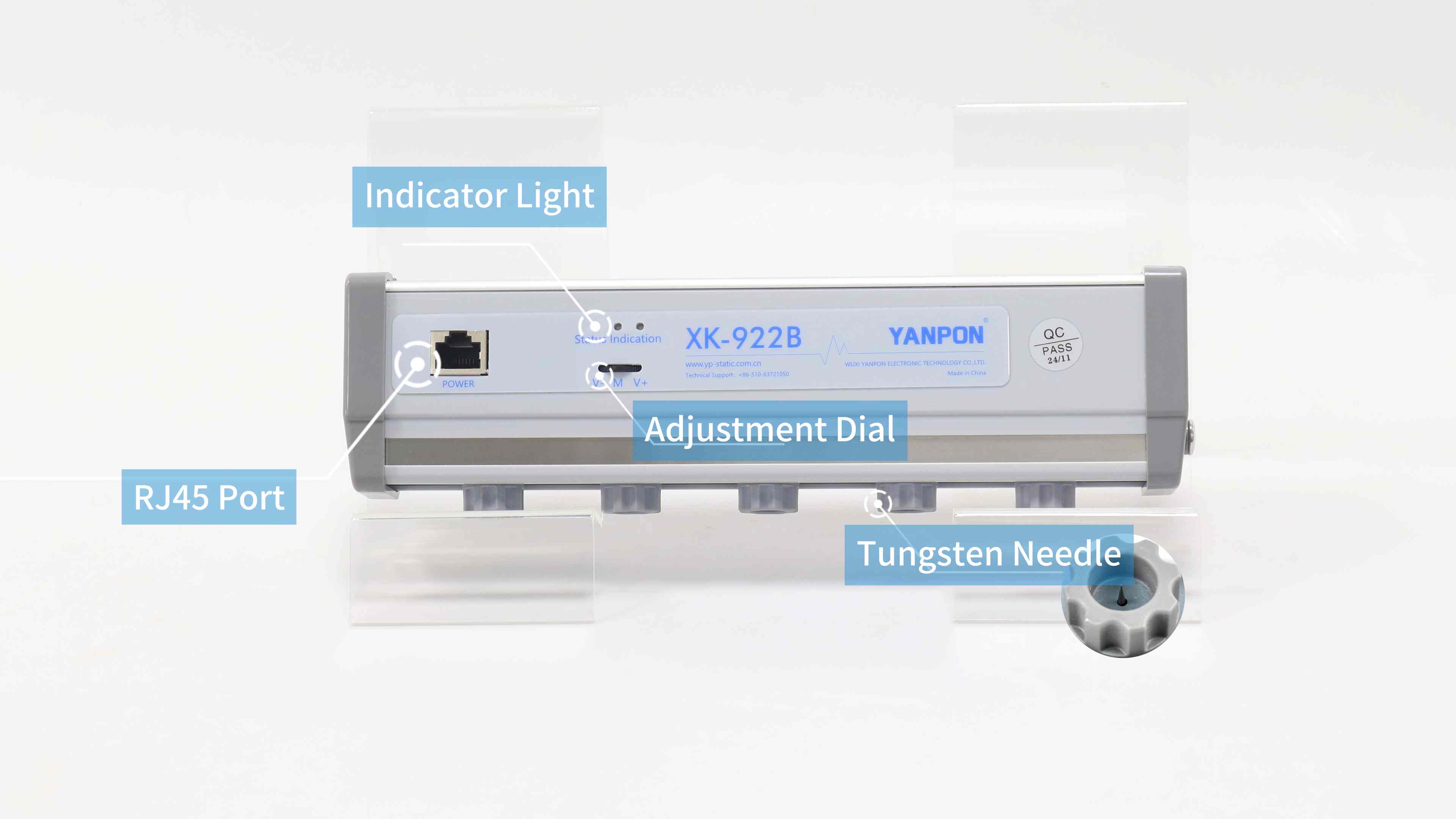

2      Precise fine-tuning of positive and negative voltages can be achieved via physical dials.

3      The device supports RS485 communication, enabling users to remotely monitor device status, obtain real-time data, and facilitate efficient intelligent management.

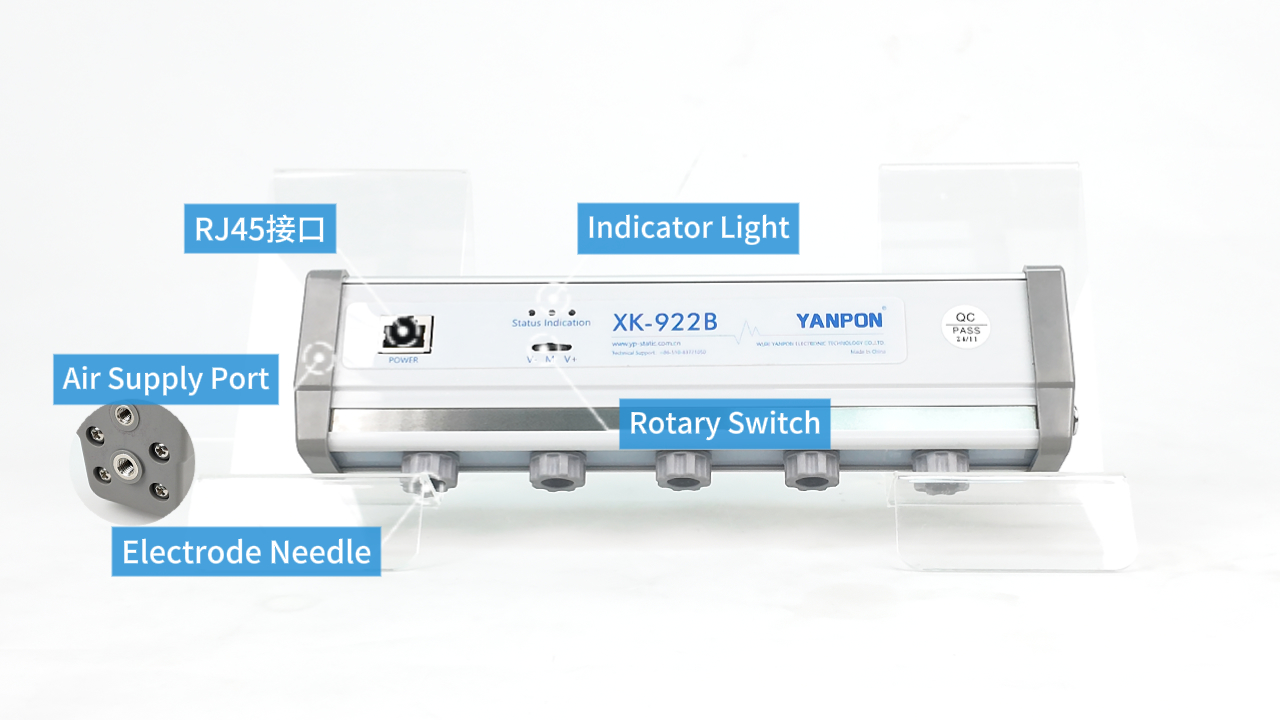

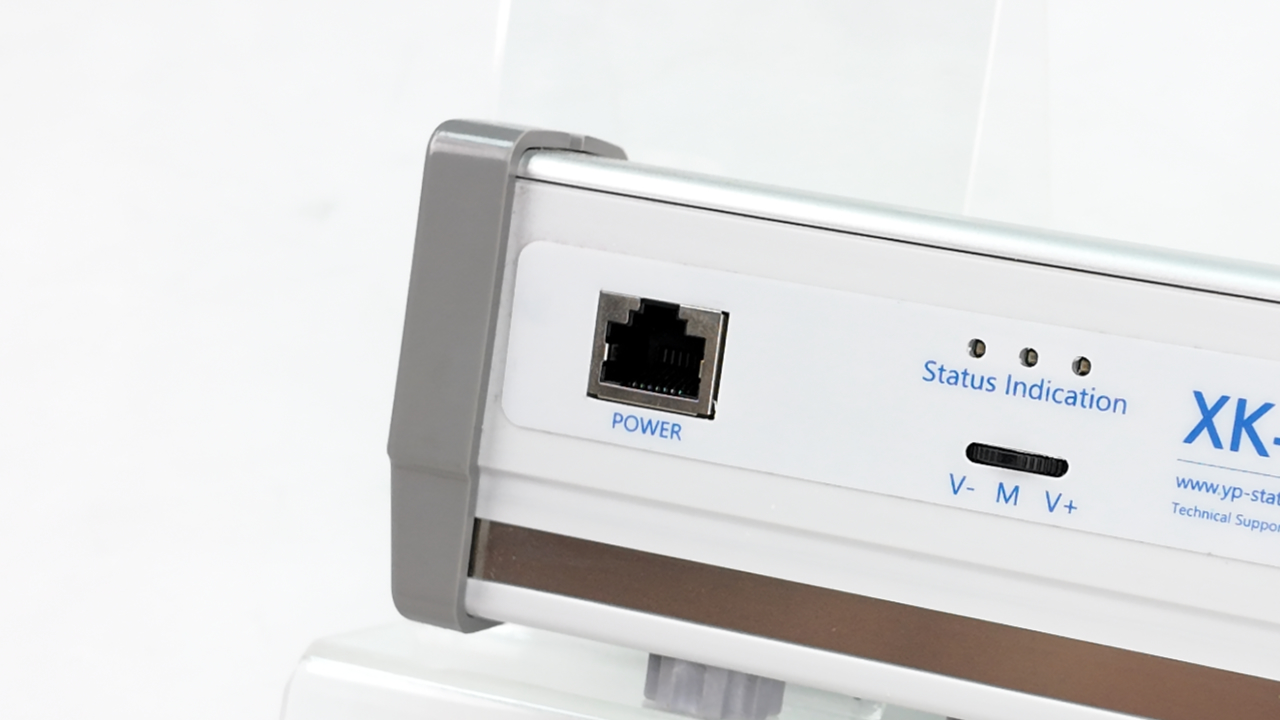

4      Diverse LED lights indicate the status of the static eliminator, as well as high-voltage and cleaning alarms.

Performance Parameter

  • parameter/Version
    XK-922B
  • Ion generation mode
    Corona discharge
  • Voltage application mode
    Pulsed AC / ±7000V
  • Ion balance range
    ≤±30V(manual) ≤±100V(automatic)
  • Charge elimination time
    <3S(300mm)
  • Discharge short-circuit alarm
    Indicator light alarm
  • High voltage abnormal alarm
    Indicator light alarm
  • Input voltage
    DC24V~36V±10%
  • Output power
    <15W

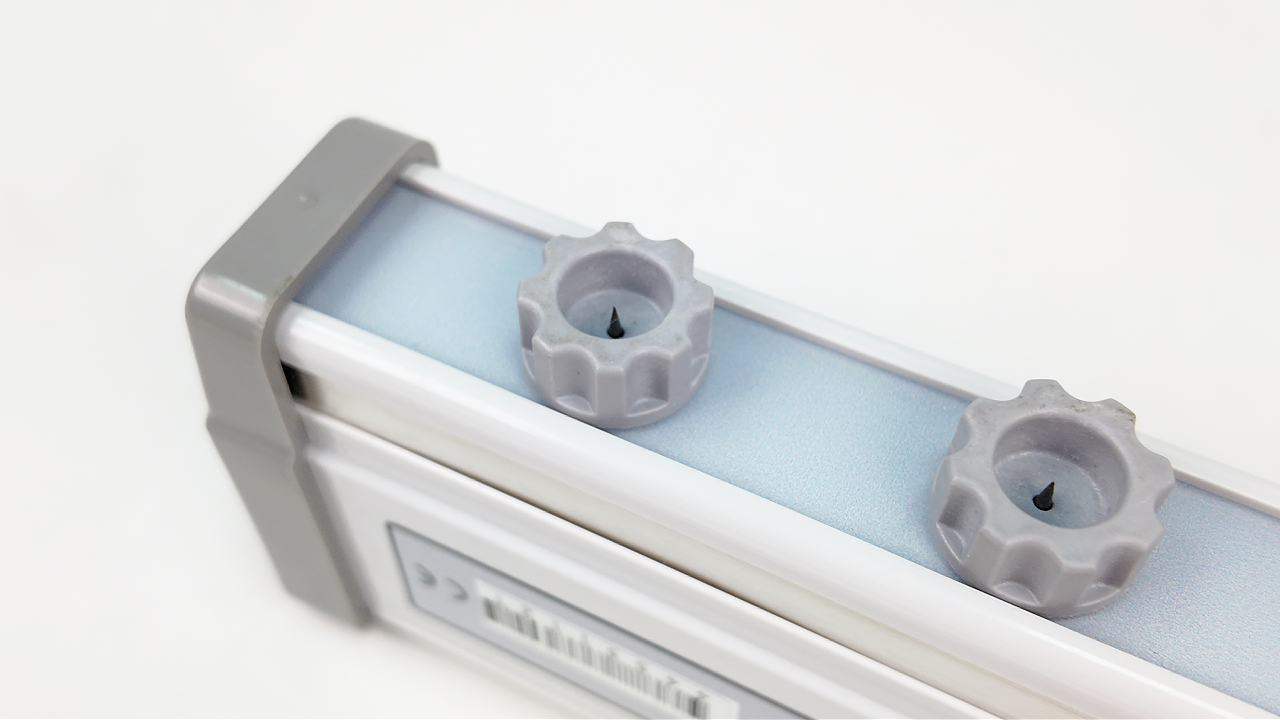

  • Electrode material
    Tungsten needle
  • Operating temperature
    0℃~50℃
  • Operating humidity
    35~85%RH
  • Communication
    RS485(MODBUS-RTU)

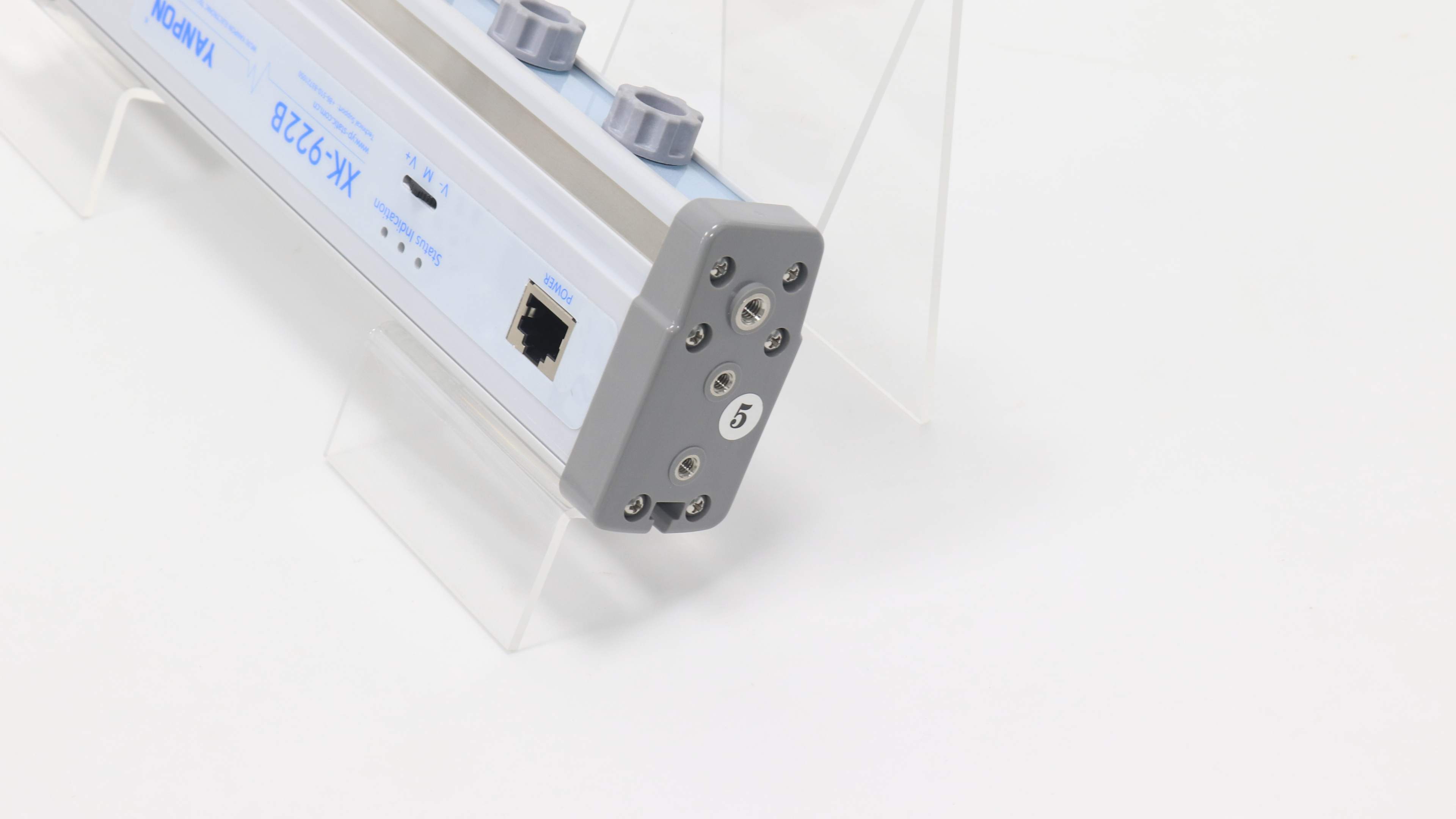

  • Air supply interface
    SL4-M5
  • Air supply pressure
    0.1~0.5MPa (recommended 0.3MPa)

Working Mode


Electrification Effect

Product Size
