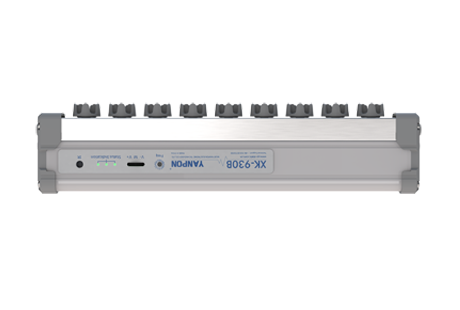

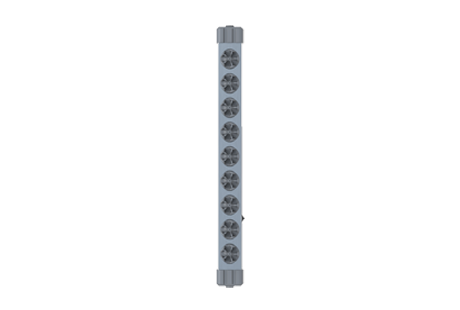

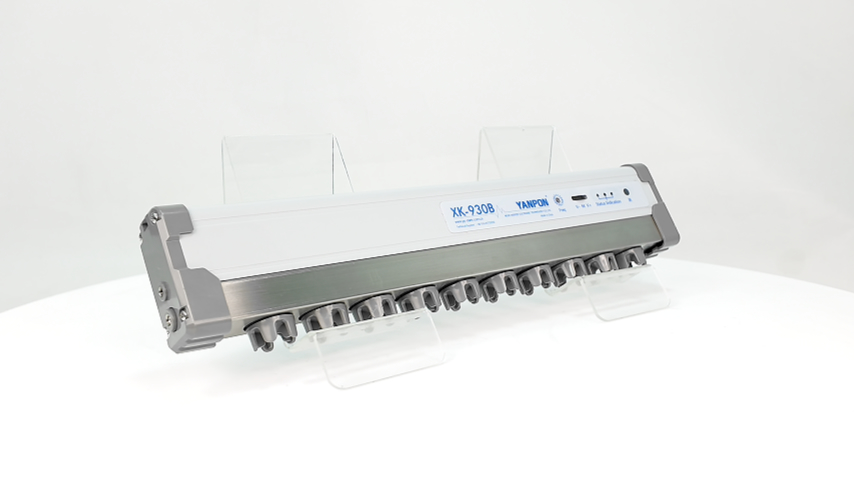

Intelligent DC Static Eliminator

XK-930B
Equipped with ion balance detection function, ion balance within ±30V
Supports on-body and remote parameter adjustment for flexible operation

Application Field

  • Semiconductor Industry

  • Functional Film Industry

  • Lithium Battery Industry

  • Electronics Industry

  • Textile Industry

  • Soft Packaging Industry

  • Advertising Industry

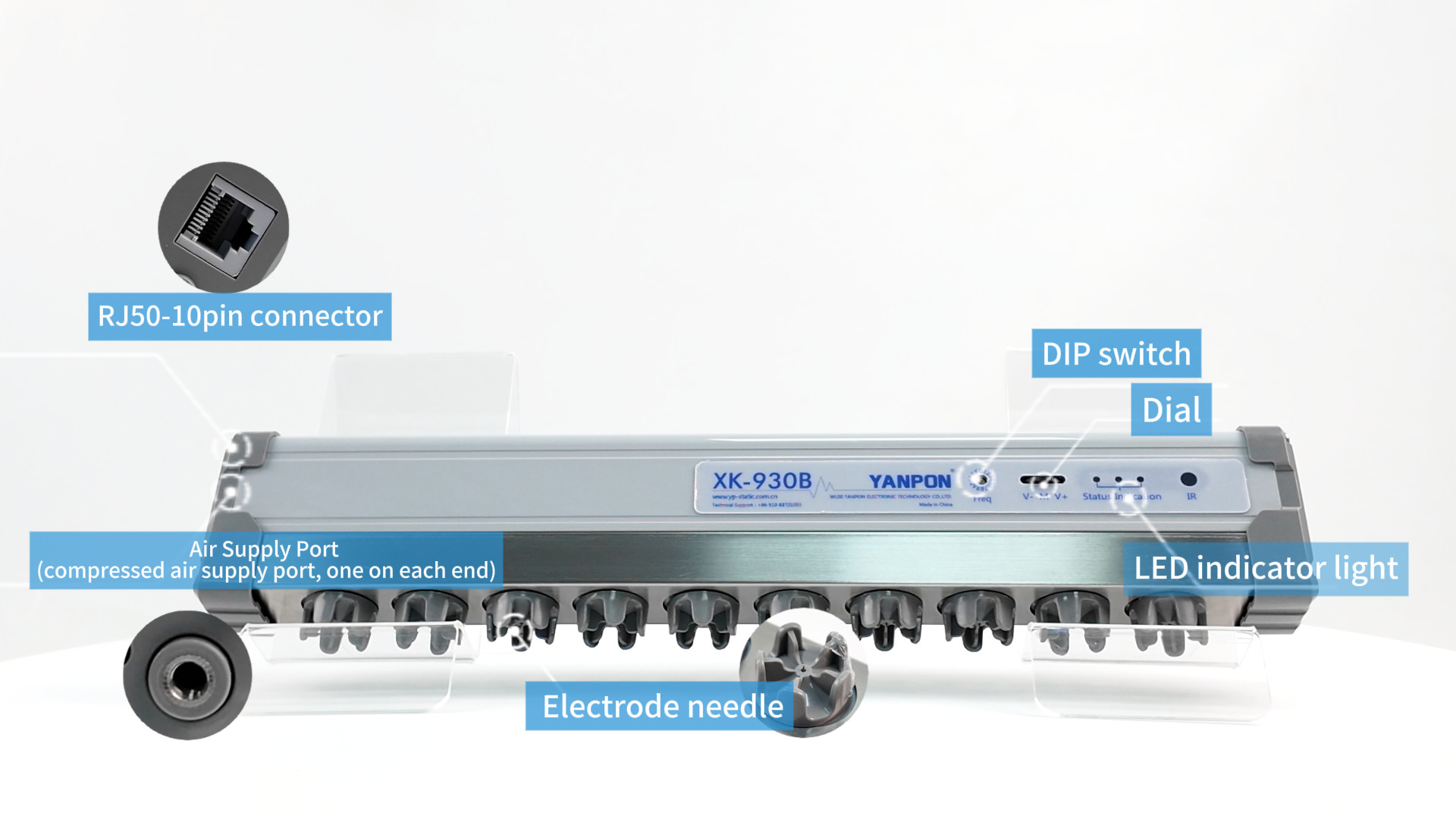

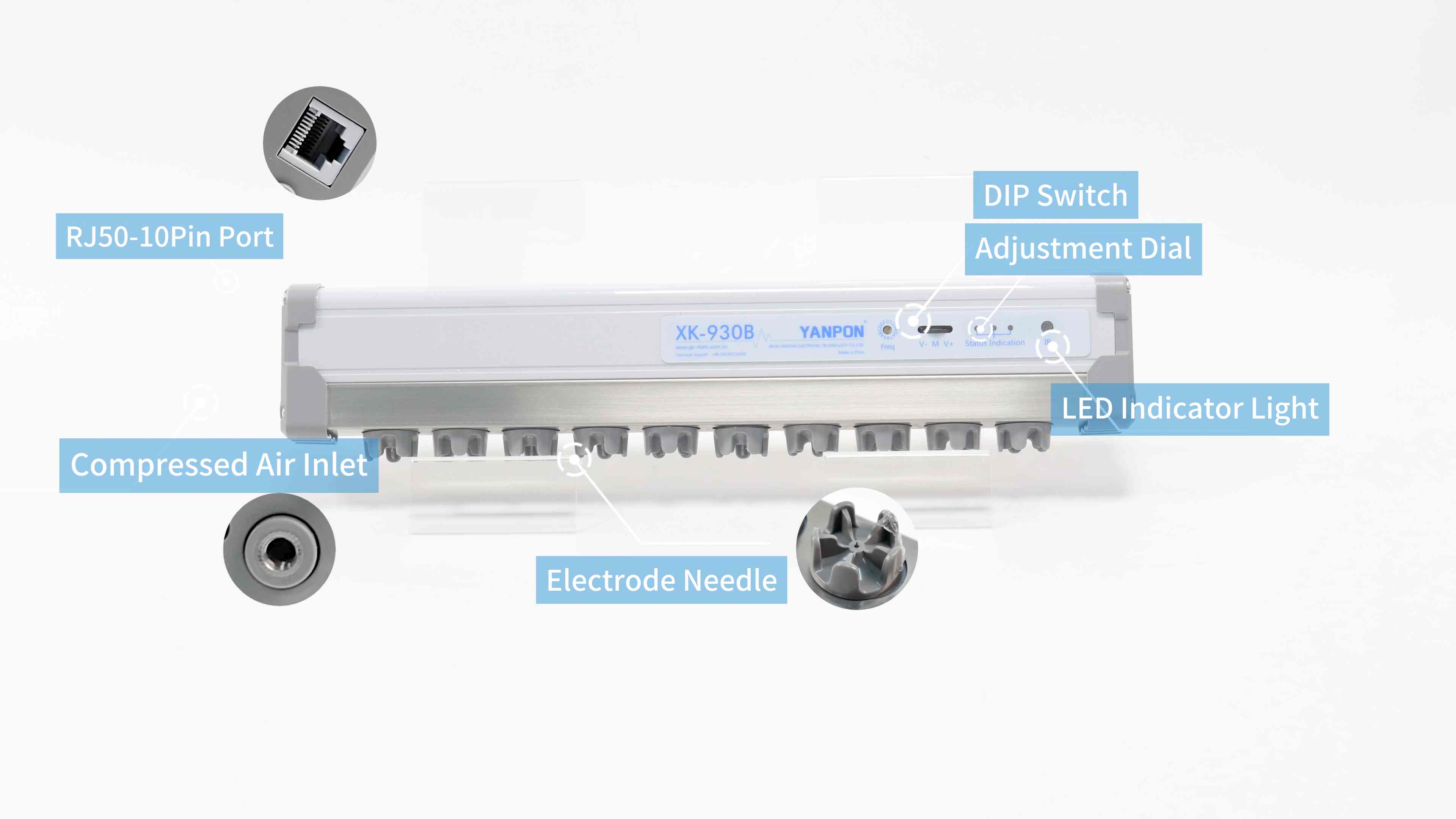

Product Characteristics

1    Supports RS485 communication protocol to realize remote management and control of the equipment

2   Supports on-body parameter adjustment and remote parameter adjustment to meet diverse static elimination needs

3    Adjustable dial design for precise adjustment and thorough static elimination

4   LED indicator light for real-time monitoring of equipment operation status

5   Alarm output and enable control functions, which automatically cut off the high-voltage output when the equipment is abnormal to ensure the safety of the equipment and personnel

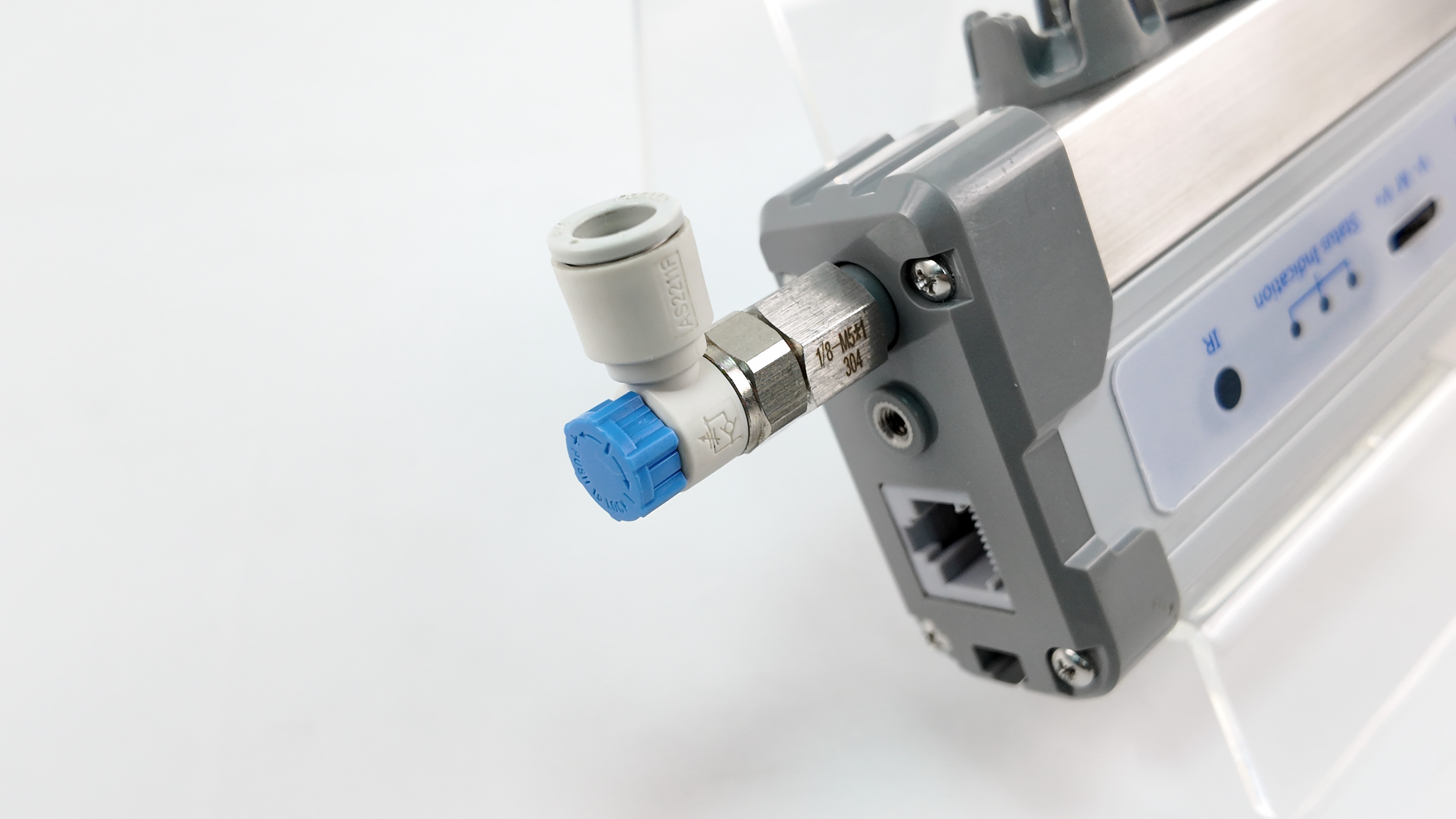

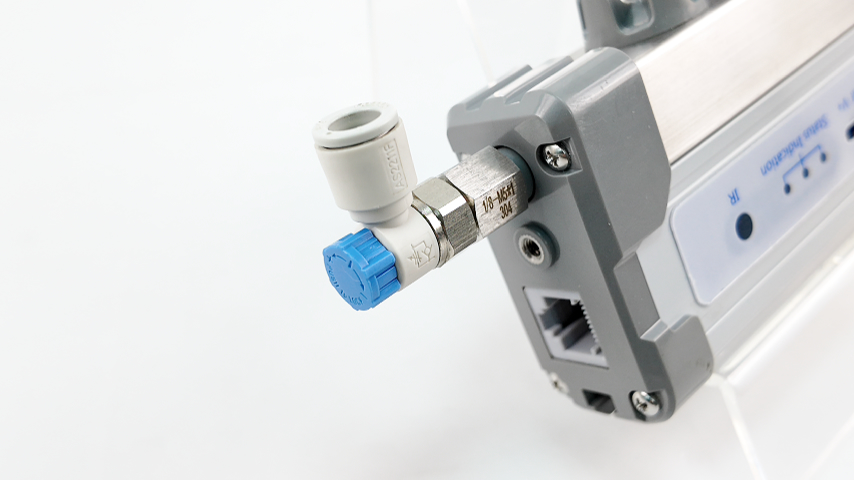

6   The air pipe supplies clean and dry air to prevent dust accumulation on the electrodes and improve the static elimination range and speed

7    Equipped with an infrared remote control, supporting remote parameter adjustment and automatic mode (optional)

Performance Parameter

  • Parameter Mode
    XK-930B
  • Ion Generation Method
    Corona Discharge
  • Voltage Application Method
    Pulsed AC±7000V
  • Ion Balance Range
    ≤±30V (Distance Matching)
  • Rated Power Supply
    DC24V~36V±10%
  • Rated Current Consumption
    400mA (at 24V), 300mA or less (at 36V)
  • Pollution Degree
    2
  • Working Frequency
    0.1-100HZ (Optional)
  • Airflow Pressure
    <0.5MPa
  • Main Functions
    Short-Circuit Protection Alarm, Fault Alarm Output, Ion Quantity Self-Balance Adjustment, ExternalIon Quantity Display
  • Elimination Time
    ≤2s
  • Effective Elimination Range
    50-2000mm
  • Ambient Temperature
    0℃~40℃
  • Ambient Humidity
    35~85%RH (No Condensation)
  • Communication Function
    RS485
  • Duty Cycle
    10%-90%
  • Air Supply Pressure
    ≤0.5MPa
  • Shell Material
    ABS·Stainless Steel
  • End Cover Material
    Flame-Retardant ABS

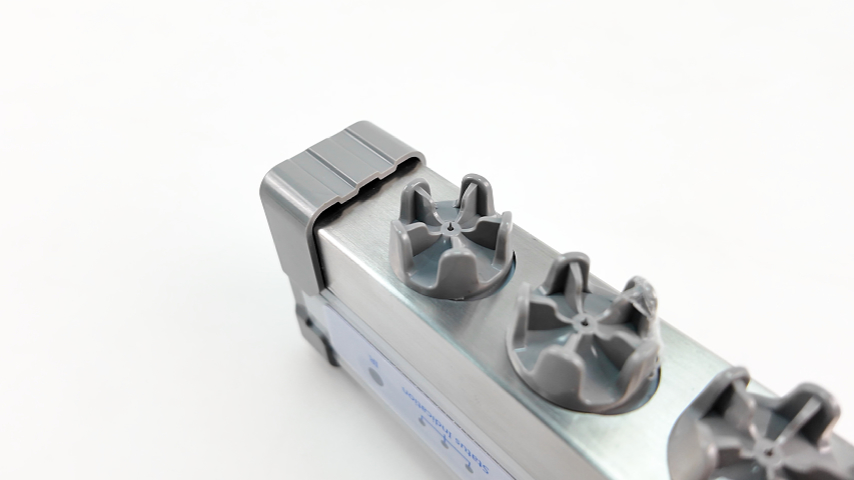

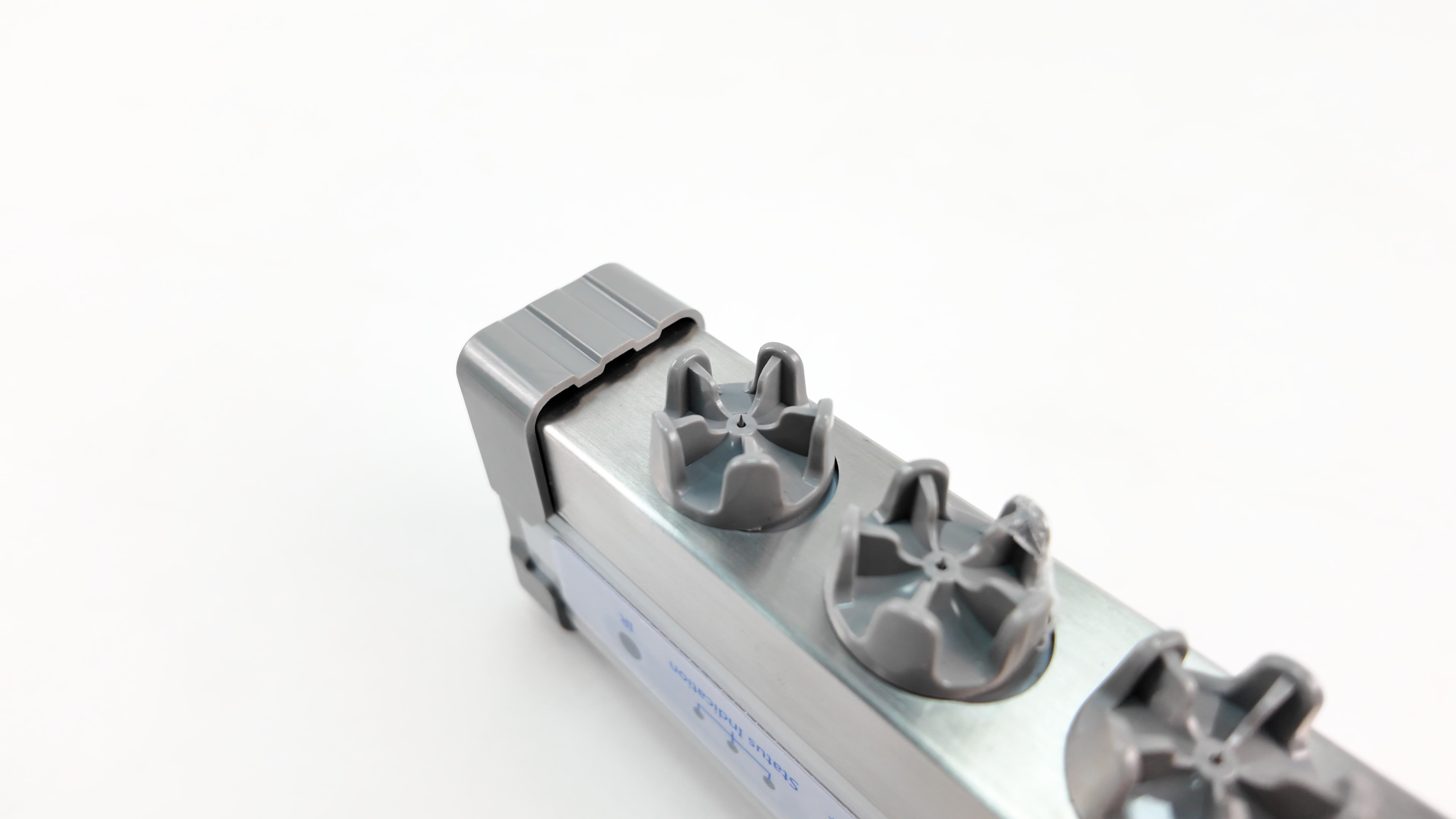

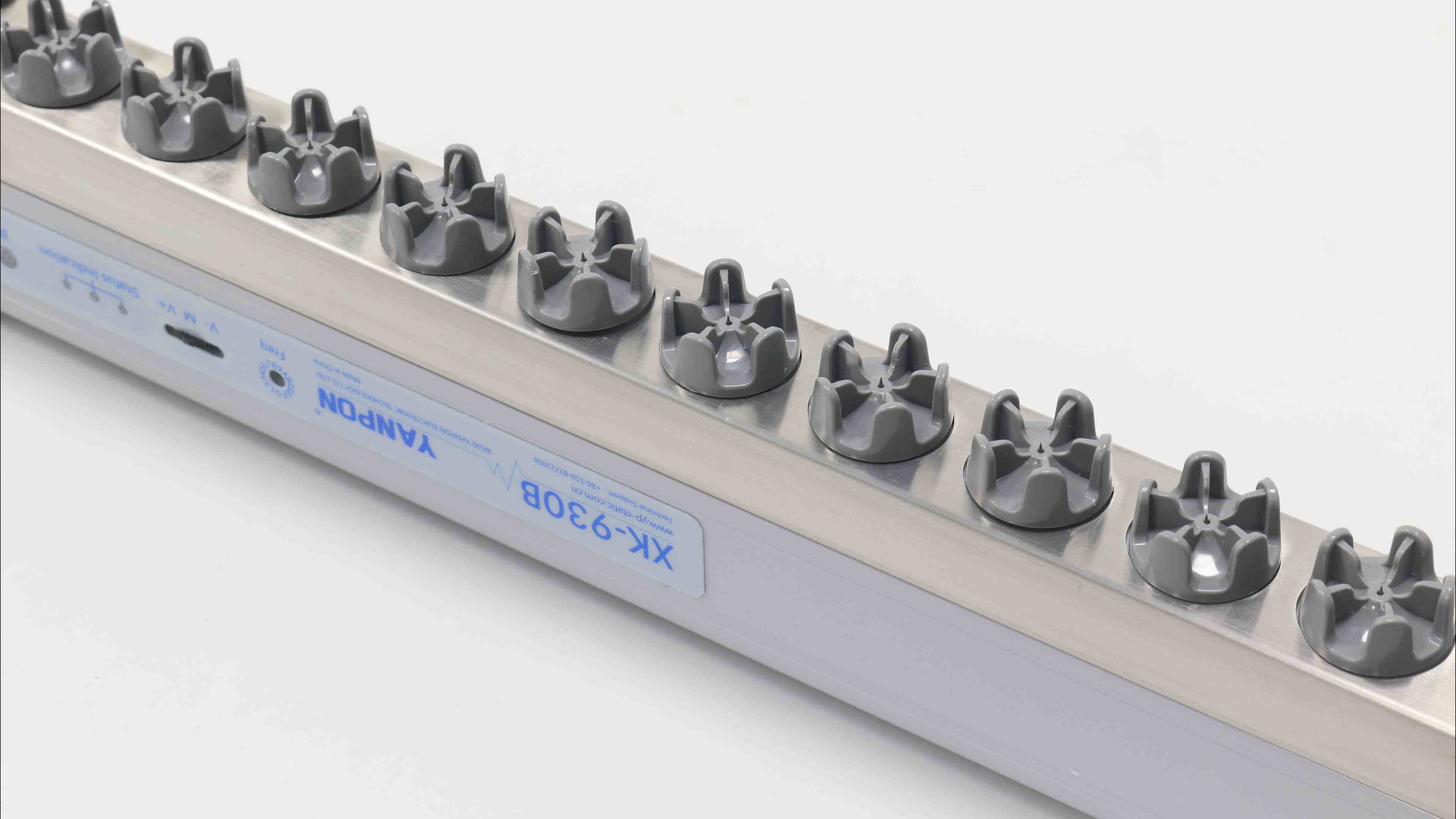

  • Electrode Needle
    Tungsten Needle
  • Weigh
    The shortest bar is about 873g (each additional needle increases the weight by 40g)

Working Mode


Product Size
