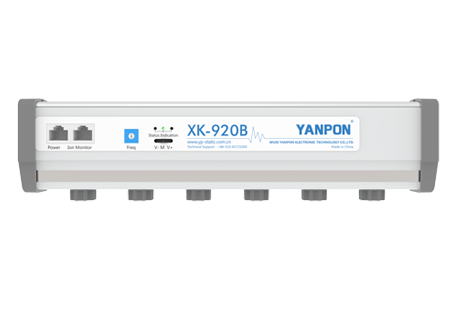

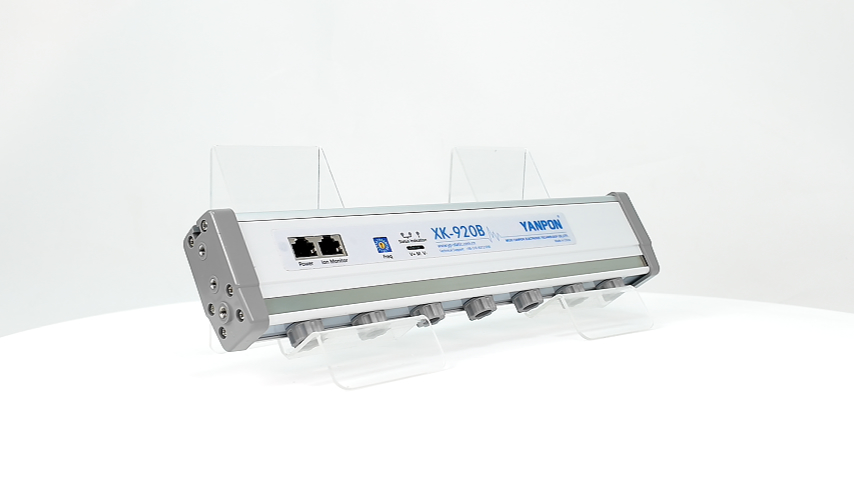

Intelligent DC Static Eliminator

XK-920B
With ion balance detection function, ion balance within ±35V, supports body and remote parameter adjustment, flexible operation.

Application Field

  • Semiconductor Industry

  • Functional Film Industry

  • Lithium Battery Industry

  • Electronics Industry

  • Textile Industry

  • Soft Packaging Industry

  • Advertising Industry

Product Characteristics

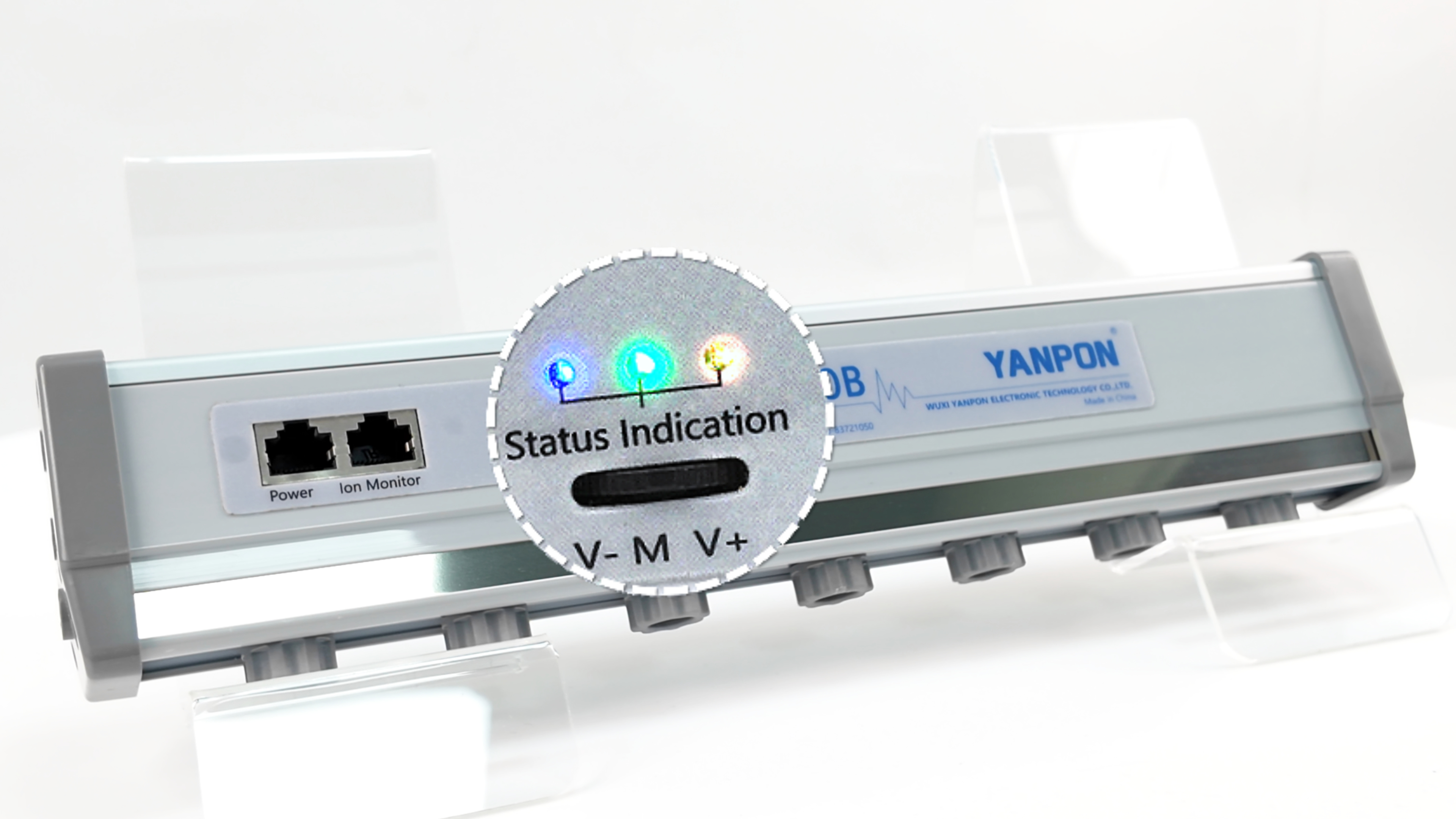

1      With ion balance detection function, continuously monitors and corrects, maintains ion balance within ±35V, ensuring optimal static elimination effect.

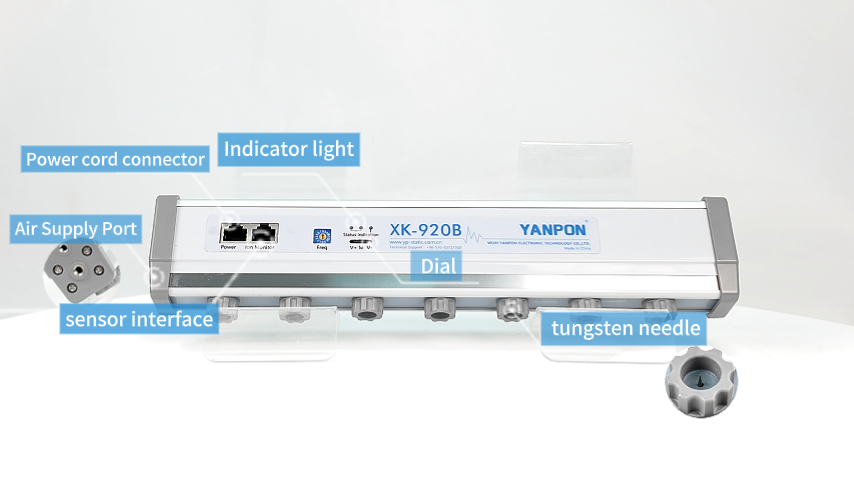

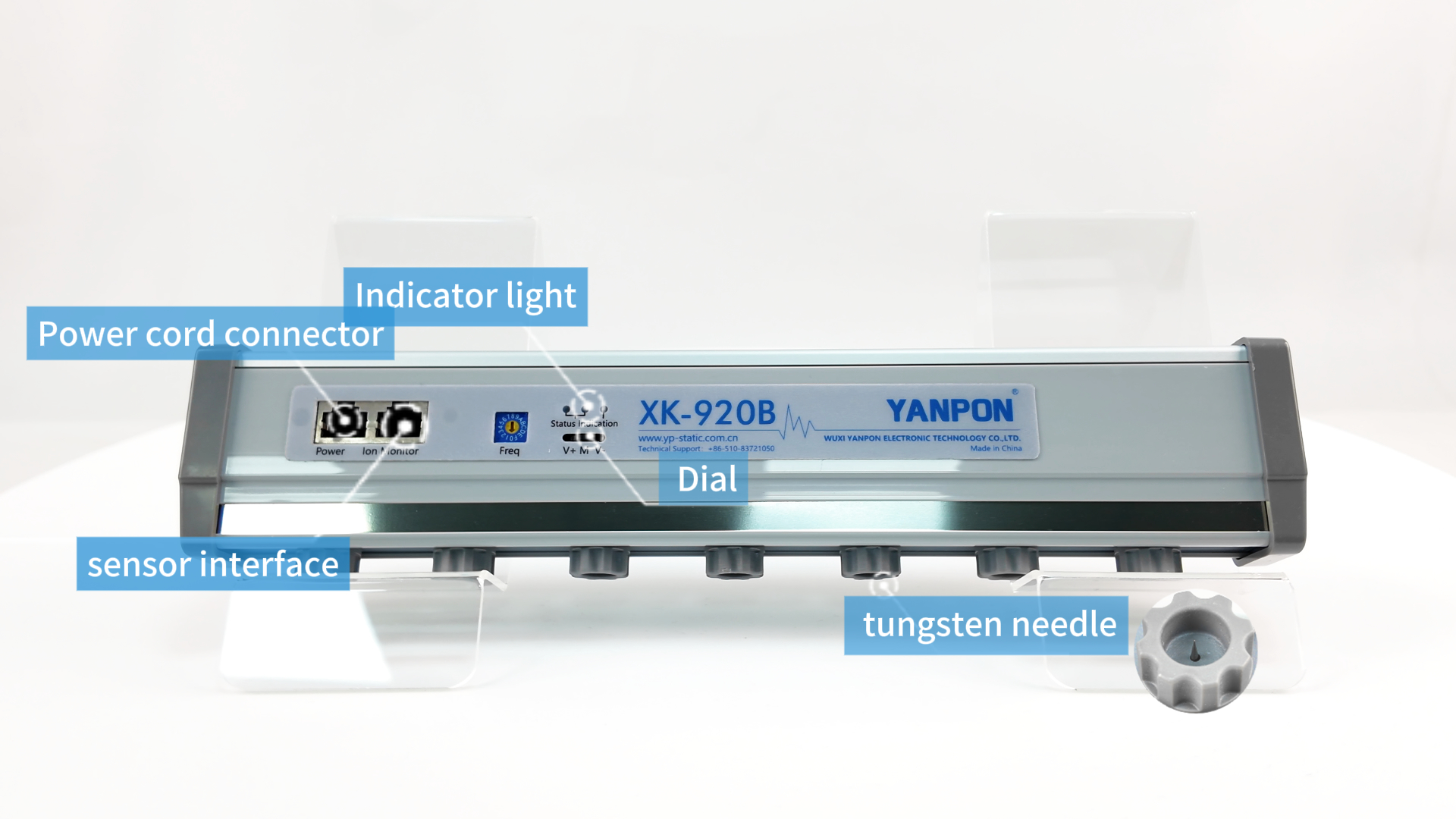

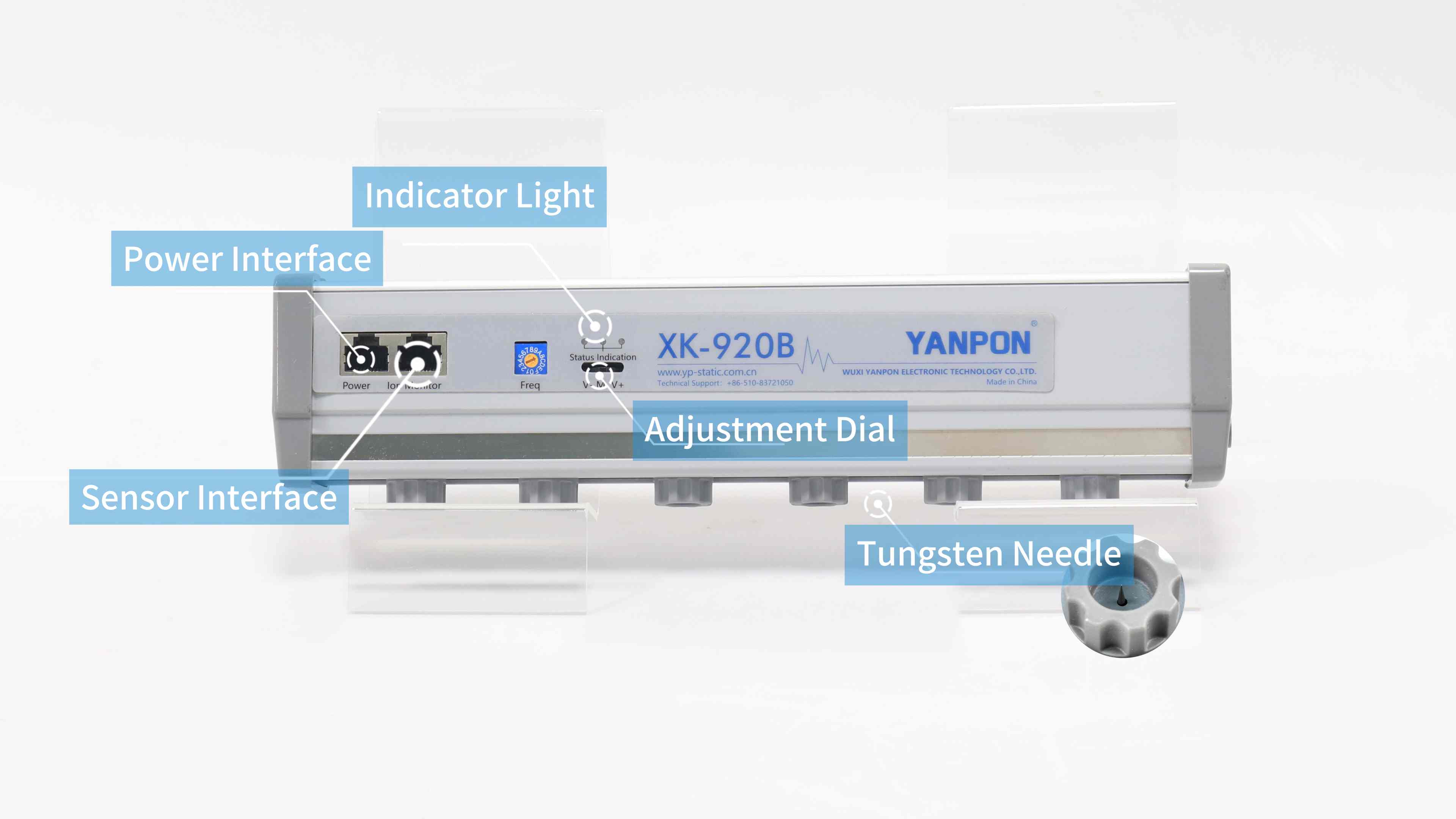

2      Precise fine-tuning of positive and negative voltages can be achieved through physical dials.

3      The equipment supports RS485 communication, users can remotely monitor the equipment status and obtain real-time data, facilitating efficient intelligent management.


Performance Parameter

  • parameter/Version
    XK-920B
  • Ion generation mode
    Corona discharge
  • Voltage application mode
    Pulsed AC / ±7000V
  • Ion balance range
    ≤±30V(manual) ≤±100V(automatic)
  • Charge elimination time
    <3S(300mm)
  • Discharge short-circuit alarm
    Indicator light alarm
  • High voltage abnormal alarm
    Indicator light alarm
  • Input voltage
    DC24V~36V±10%
  • Output power
    <15W

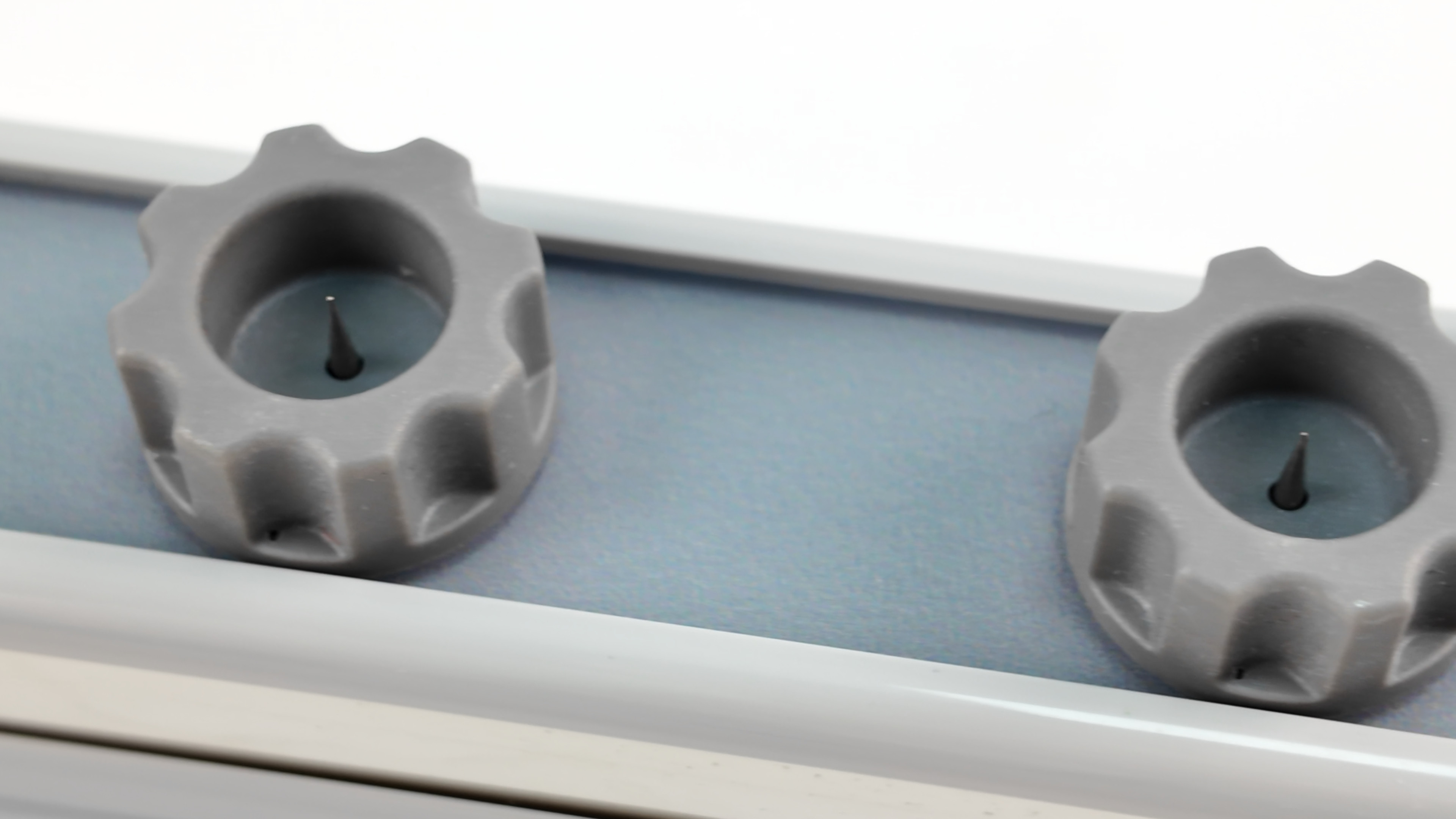

  • Electrode material
    Tungsten needle
  • Operating temperature
    0℃~50℃
  • Operating humidity
    35~85%RH
  • Communication
    RS485(MODBUS-RTU)
  • Air supply interface
    SL4-M5
  • Air supply pressure
    0.1~0.5MPa (recommended 0.3MPa)

Working Mode


Electrification Effect

Product Size
