Application Field
-
Lithium Battery Industry
-
Electronics Industry
-
Advertising Industry
Product Characteristics

1 Supports size customization of 200-600mm, customizing the size according to needs to make the product fit the usage scenario
Compact body saves installation space
2 Equipped with built-in short-circuit automatic protection to protect the safe operation of the equipment

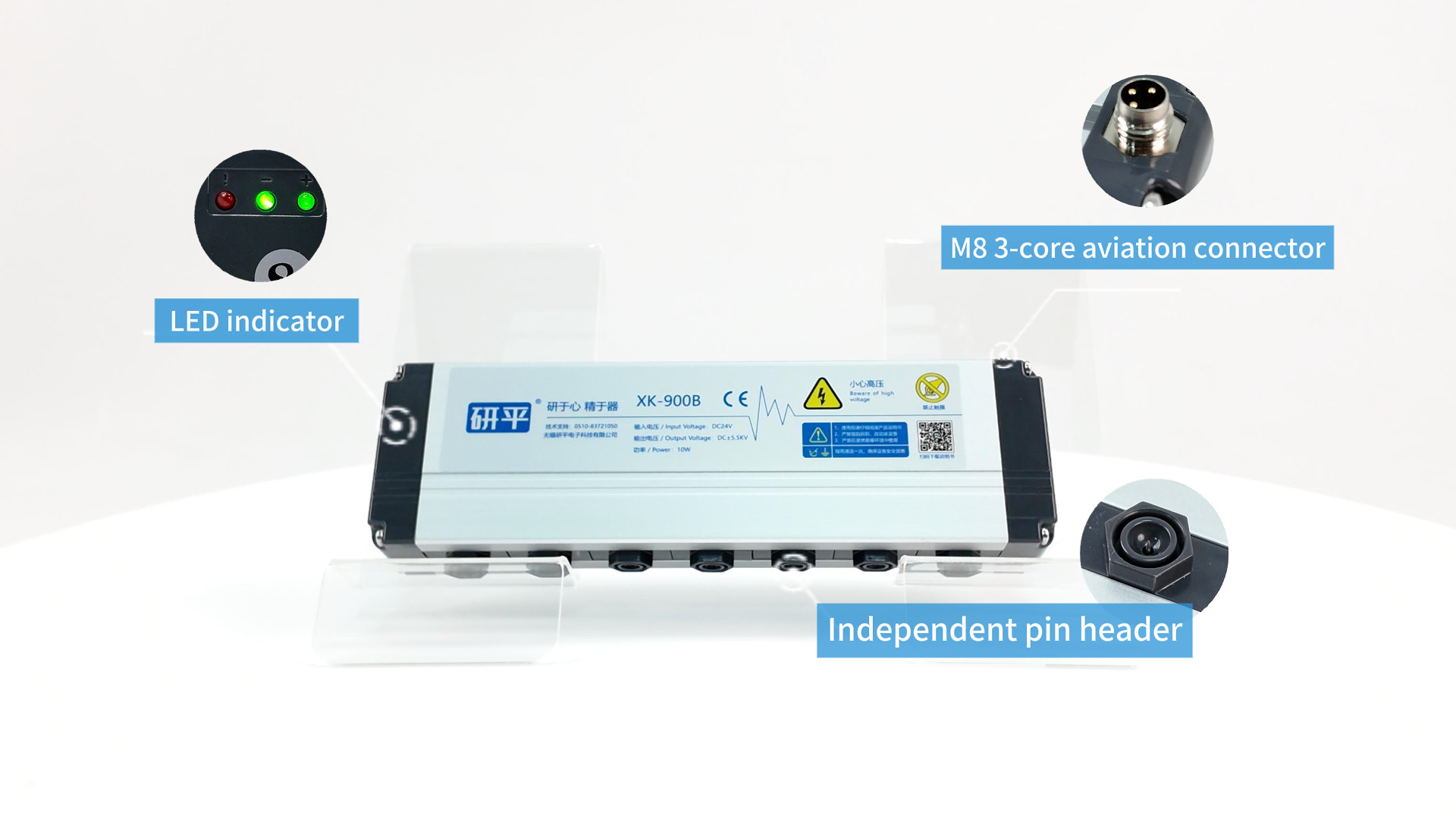

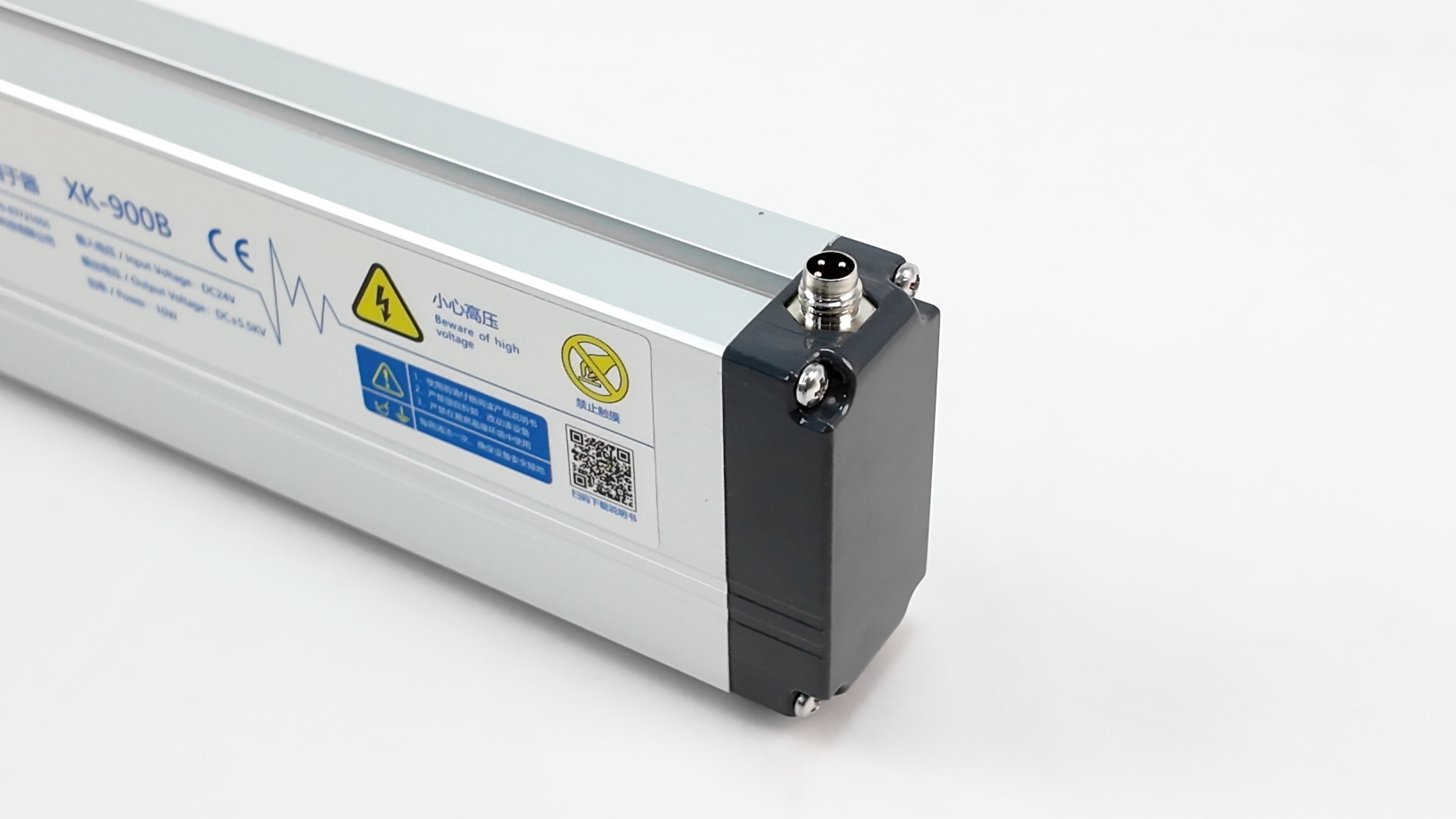

3 Single aviation plug cable (M8 3-core aviation plug cable) for simple wiring, avoiding wire routing through drag chains
4 Specialized for UV flatbed printers / UV roll-to-roll printers / UV inkjet printers
Performance Parameter

- Parameter ModelXK-900B
- Input VoltageDC24V+10%
- Input Current<600mA
- Output Power10W
- Output VoltageDC+5.5KV
- Working ModePulsed AC
- Emission ElectrodeStainless Steel
- Discharge StructureDirect Coupling
- Output Frequency15/40Hz (Factory Setting: 15Hz)
- Duty Cycle50%
- Bar SizeL*W*H:{220-470mm;}*30*60mm
- Installation Distance80~150mm
- Ion Balance±50V
- Static Elimination Time<2s
- Abnormal AlarmAlarm Indicator Light (Green for Normal Operation, Red for Abnormality)
- Working Temperature0℃-50℃
- Working Humidity<70%
- Bar MaterialStainless Steel + PVC
- Installation AccessoriesM4*15 Hexagon Mounting Bolts
- Warranty Period1 Year
- Certification:CE
Working Mode

Product Size
