Application Field
-
Lithium Battery Industry
-
Textile Industry
-
Soft Packaging Industry
Product Characteristics

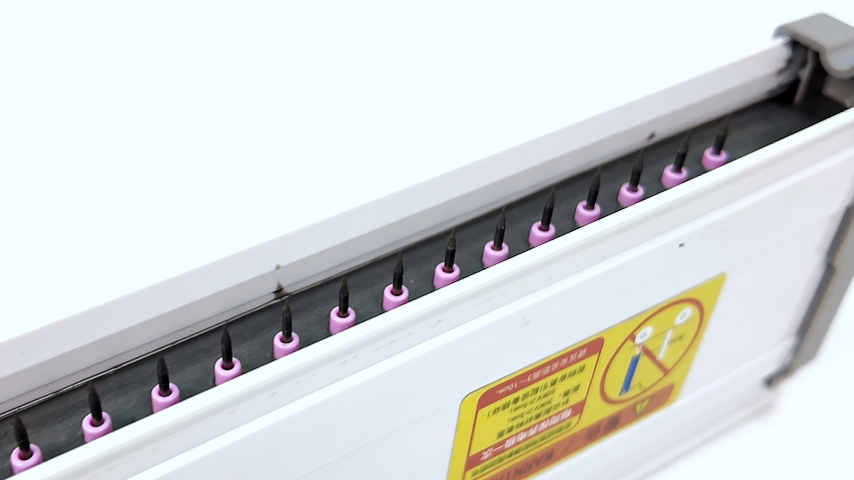

1 A ceramic sheath is added around the electrode to reduce the risk of abnormal discharge and extend the service life.
2 Adopts a coupled electrode design; used in scenarios where static electricity needs to be generated for adsorption and lamination, mainly including lamination, film coating, packaging, bag making, etc.
Performance Parameter
- Parameter ModelYP-HV-BF31
- Operating Voltage±DC30KV - 50KV
- Input Power<50W/M
- Emitting ElectrodeTungsten Needle
- Mounting Distance50mm-100mm(30KV-50KV)
- Product Size150-2600mm
- Product Weight3250g/M
- Distance Between Needles10mm
- Static Adsorption ForceBF31 ≥3500g (Tested by Static Adsorption Force Test Platform)
- Operating Temperature0-50℃
- Operating Humidity0~70%RH
Product Size
