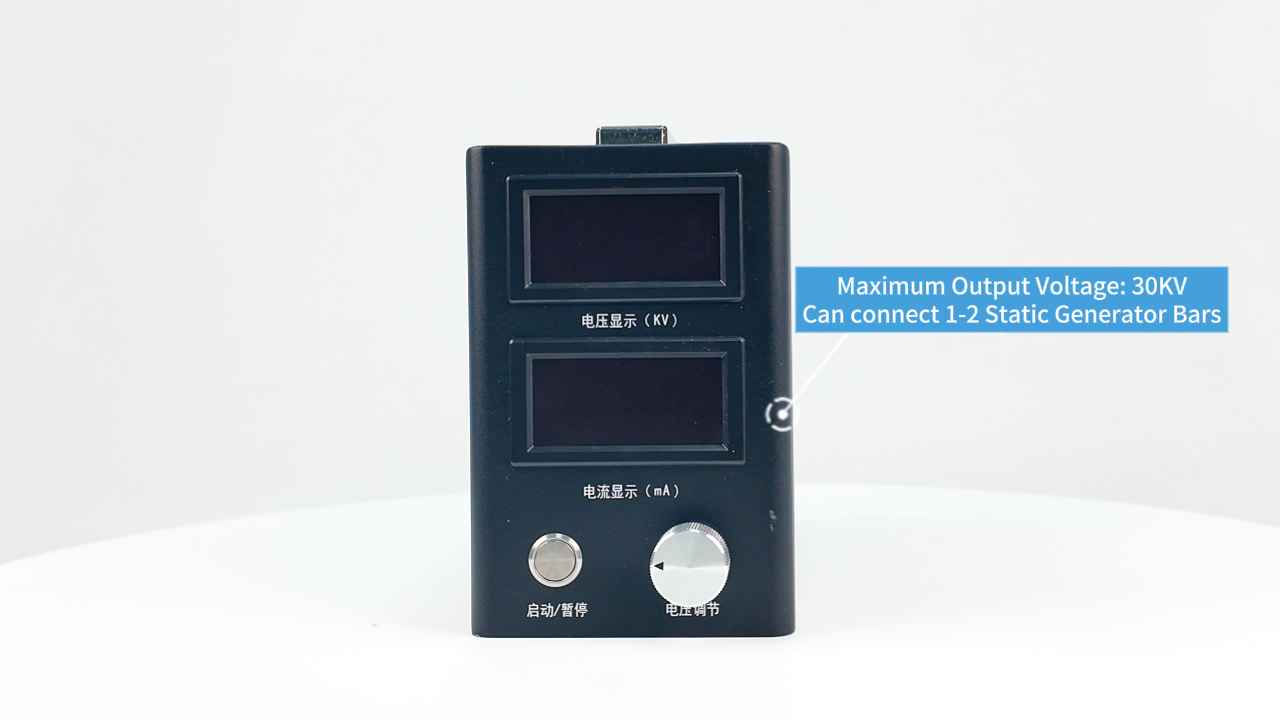

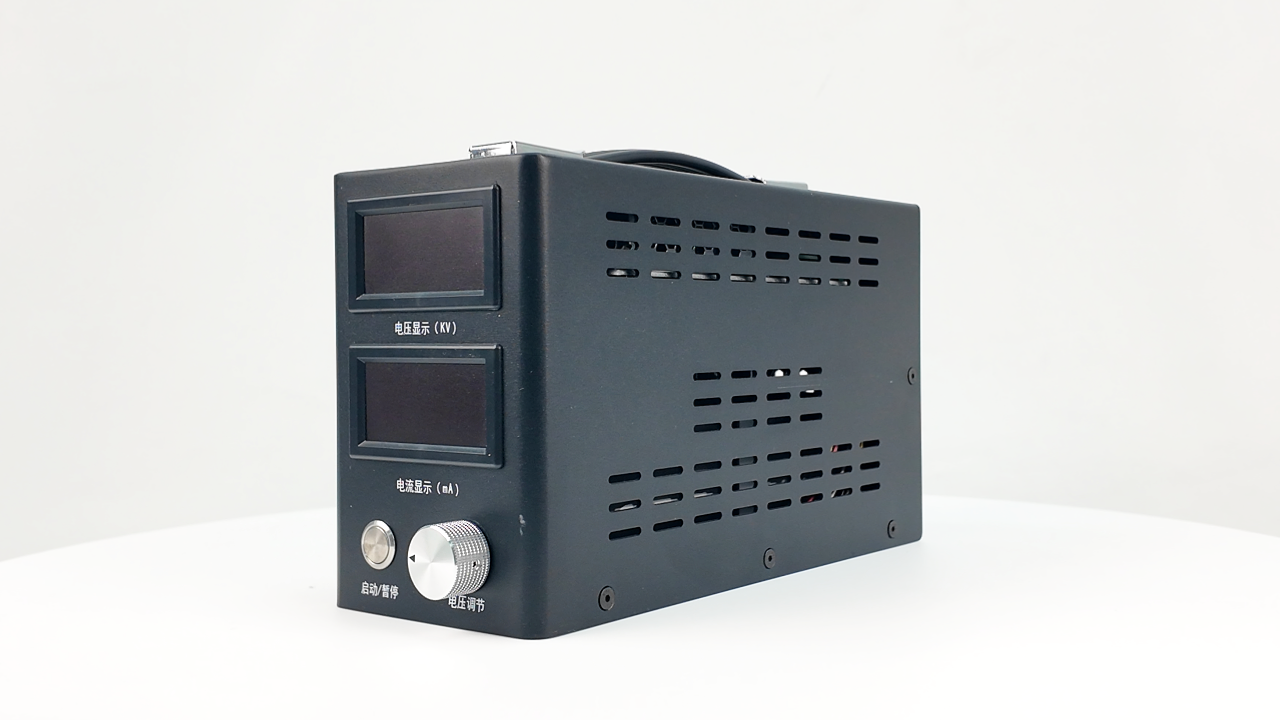

30KV Electrostatic Generator

YP-HV031-01P/N
It provides a maximum positive/negative high-voltage output of 30KV and 1mA

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1    Built-in multiple protection mechanisms such as short circuit, overvoltage, and overcurrent protection. These mechanisms guarantee that the device automatically stops the output when abnormal situations arise, protecting the circuit from harm and prolonging the device's service life.

2   Users have the flexibility to adjust the output voltage to achieve accurate control.

3   Small size reduces the number of external components, improves stability, and at the same time reduces energy consumption and noise.

4    The compact design makes installation and maintenance easy, and it is suitable for various spatial layouts.

Performance Parameter

  • parameter/Version
    YP-HV30KV
  • Input Voltage
    AC220V±10%/50Hz
  • Output Voltage
    Adjustable from 0 to ±30KV
  • Output Current
    ≤1mA
  • Ripple Voltage
    -
  • Output Stability
    -
  • Operating Temperature
    -10-50℃
  • Storage Temperature
    -40-85℃
  • Operating Humidity
    20-85%RH
  • Temperature Coefficient
    -
  • Time Drift
    -
  • Weight
    4800g

Product Size
