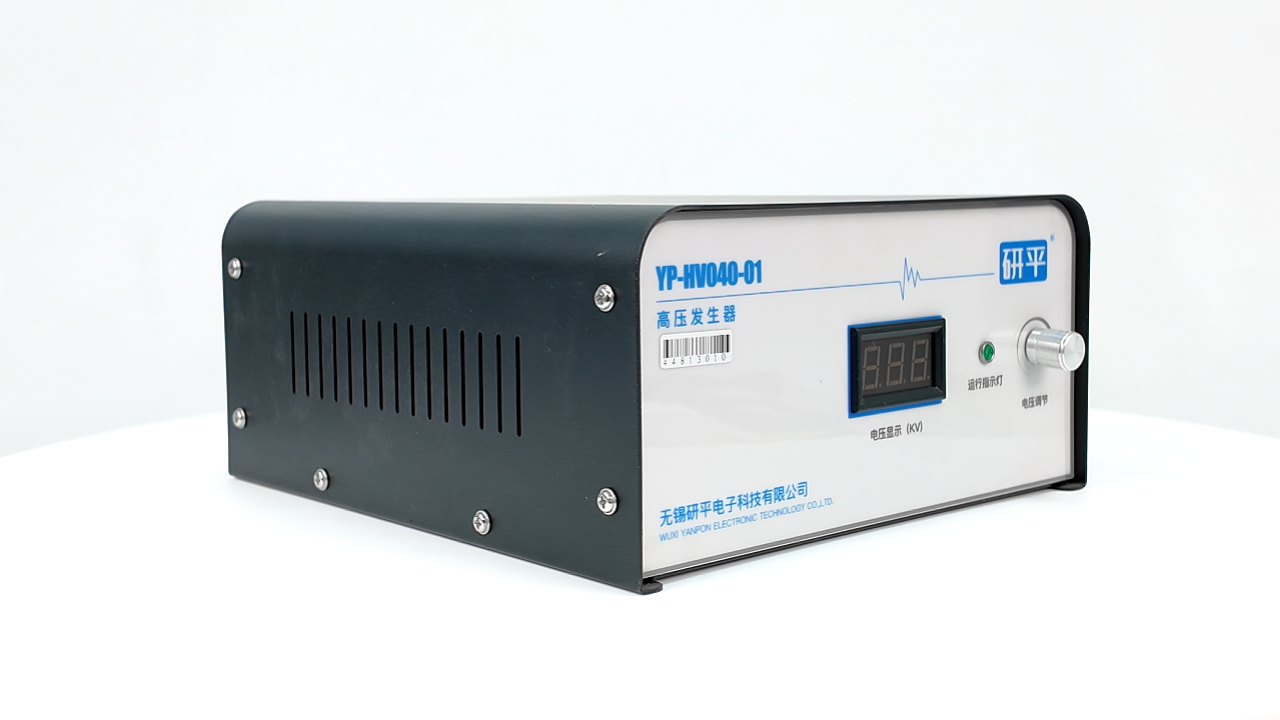

40KV Electrostatic Generator

YP-HV040-01P/N

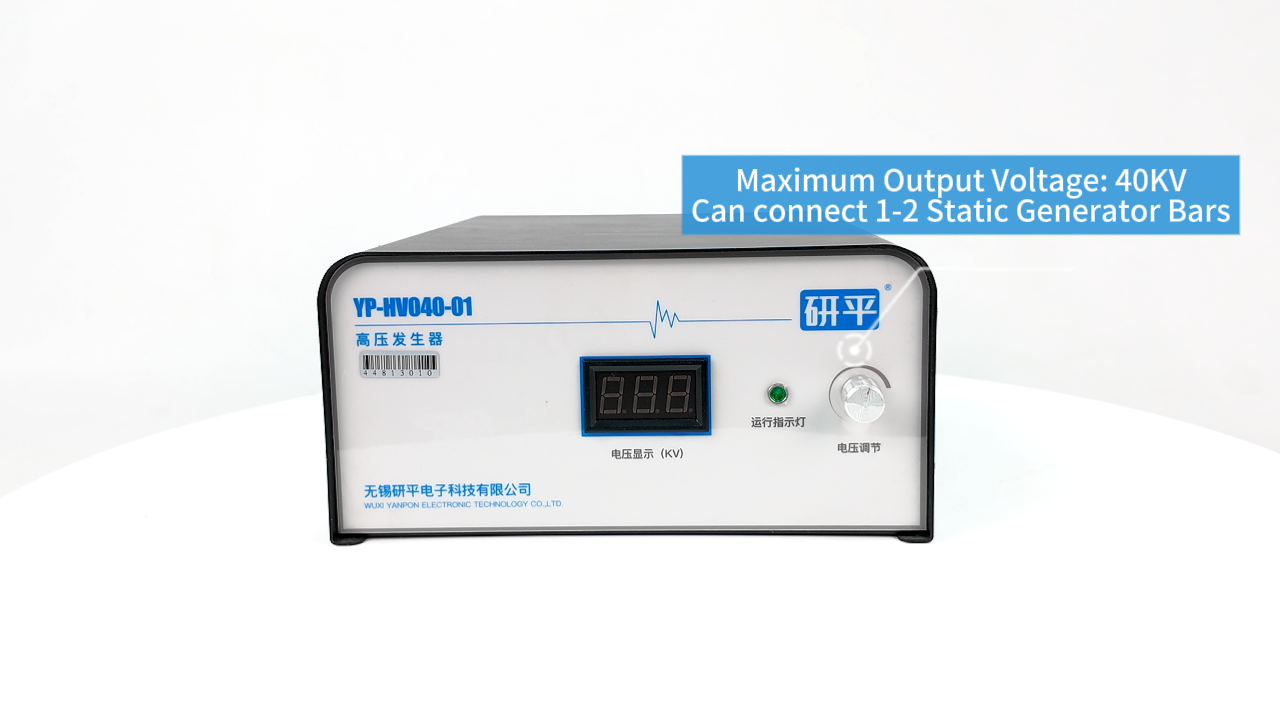

It provides a maximum positive/negative high-voltage output of 40KV and 1mA.

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1     It is mostly used in casting machines.

 Built-in multiple protection mechanisms like short circuit, overvoltage, and overcurrent protection. These ensure the device automatically shuts off the output when anomalies occur, protecting the circuit from damage and prolonging the device's service life.

2    Users are able to adjust the output voltage flexibly for accurate control.

3      High integration degree and small size reduce the number of external components, improve stability, and meanwhile decrease energy consumption and noise.

4    The compact design enables easy installation and maintenance, making it suitable for various spatial layouts.

Performance Parameter

  • parameter/Version
    YP-HV40KV
  • Input Voltage
    AC220V±10%/50Hz
  • Output Voltage
    Adjustable from 0 to ±40KV
  • Output Current
    0-1mA

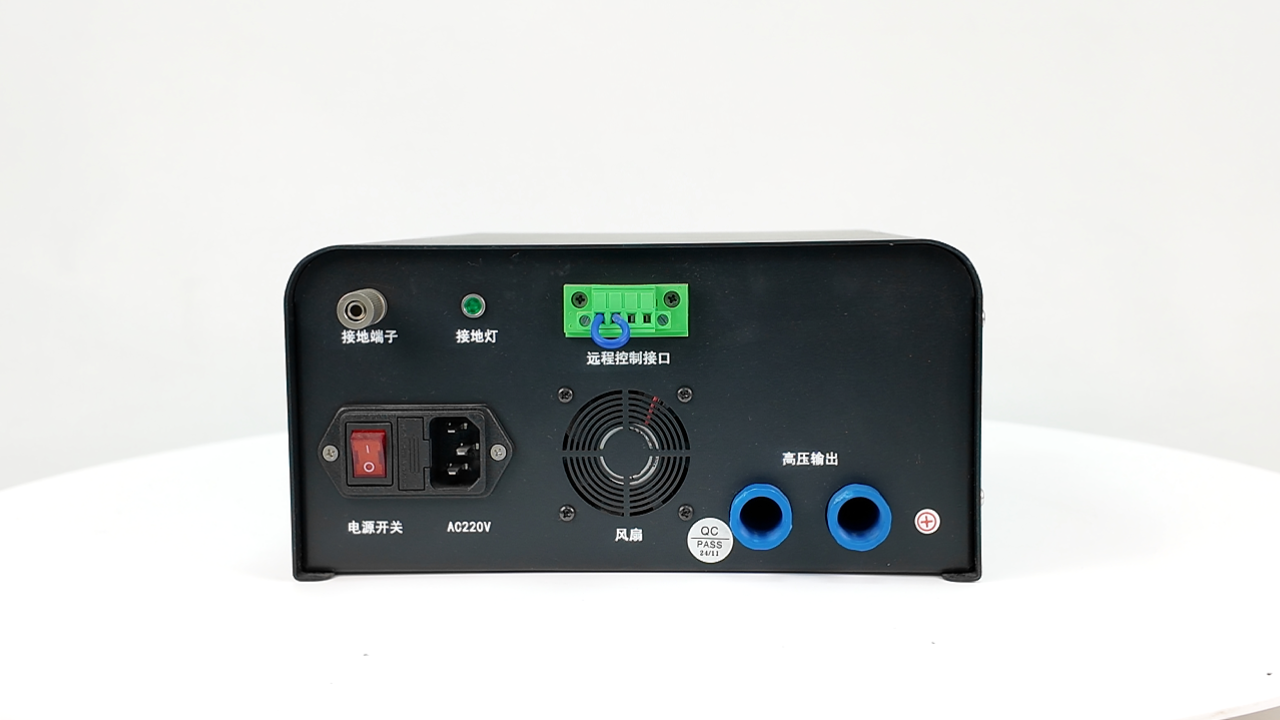

  • Number of Output Interfaces
    2 (plug-in type)
  • Protection
    Overvoltage, Arc Discharge, Output Short Circuit, Overcurrent Protection
  • Operating Temperature
    -10℃ +50℃
  • Storage Temperature
    -40℃ +85℃
  • Humidity
    20% - 85% RH, No Condensation

Working Mode


Product Size
