50KV Electrostatic Generator

YP-HV051-01P/N

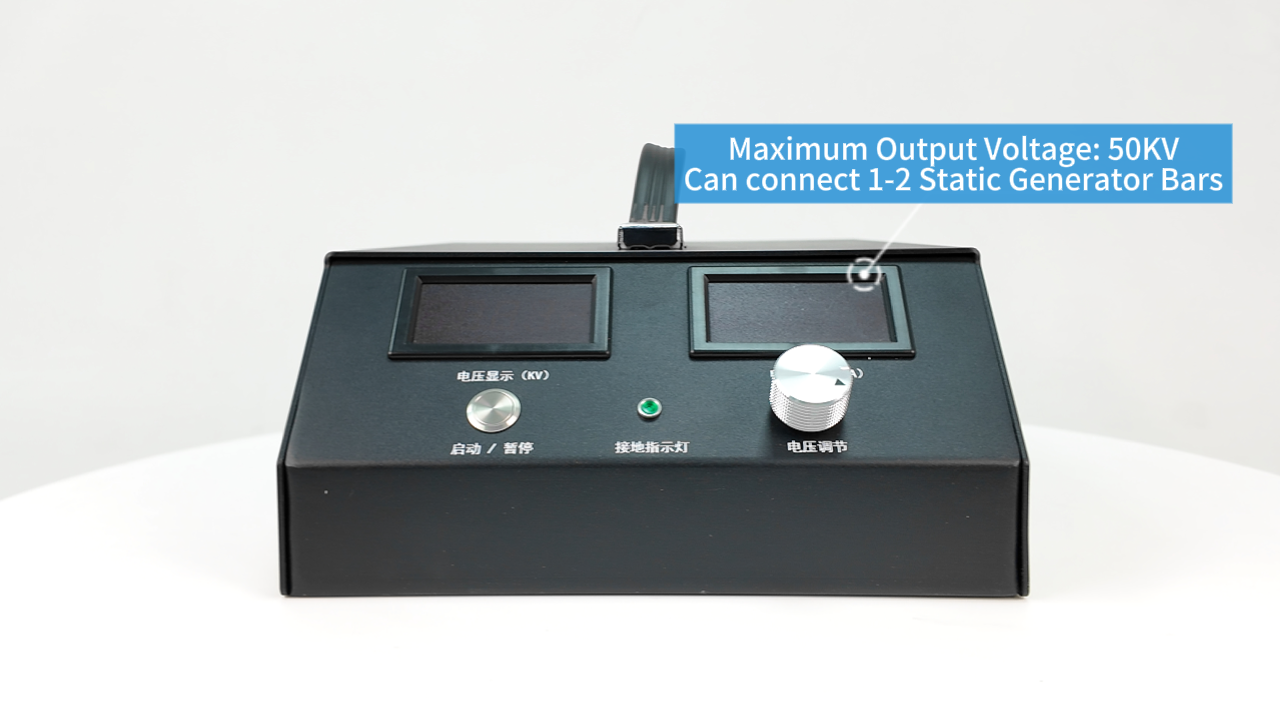

It provides a maximum positive/negative high-voltage output of 50KV and 1mA

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1     Built-in multiple protection mechanisms like short circuit, overvoltage, and overcurrent protection. These ensure the device automatically cuts off the output in abnormal circumstances, safeguarding the circuit against damage and extending the device's operational life.

2     Users have the flexibility to adjust the output voltage to achieve accurate control.

3     Compact in size, it reduces the number of external components, enhances stability, and also lowers energy consumption and noise levels.

4     The compact structure allows for easy installation and maintenance, making it suitable for different spatial layouts

Performance Parameter

  • Model Parameters
    YP-HV50KV
  • Input Voltage
    AC220V±10%/50Hz
  • Output Voltage
    Adjustable from 0 to ±50KV
  • Output Current
    ≤1mA
  • Ripple Voltage
    -
  • Output Stability
    -
  • Operating Temperature
    -10-50℃
  • Storage Temperature
    -40-85℃
  • Operating Humidity
    20-85%RH
  • Temperature Coefficient
    ≤0.1%/℃
  • Time Drift
    ≤100PPM/h (after 30 minutes of warm-up after power-on)
  • Weight
    7500g

Product Size
