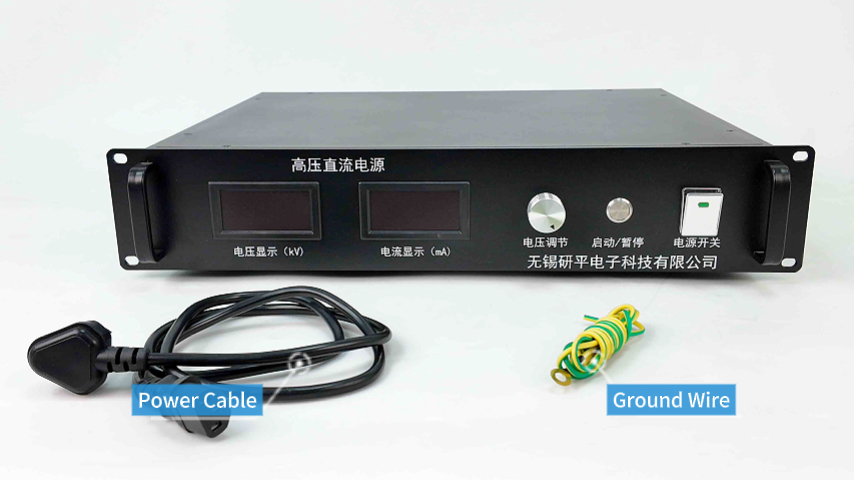

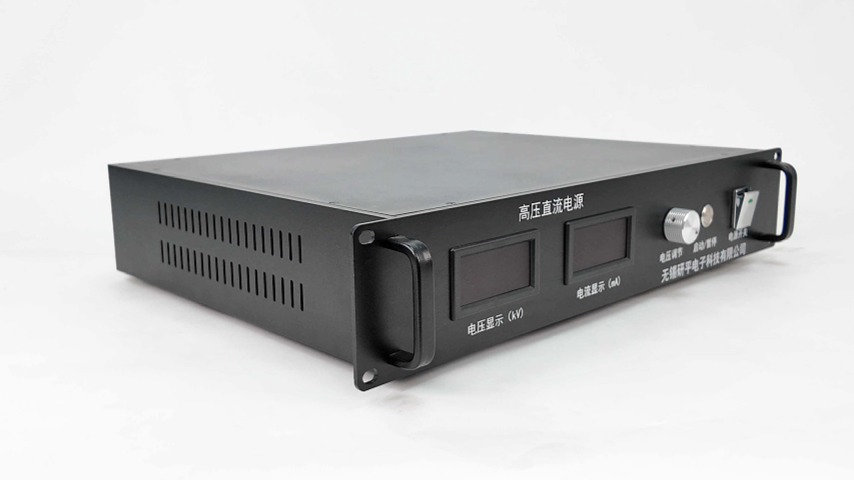

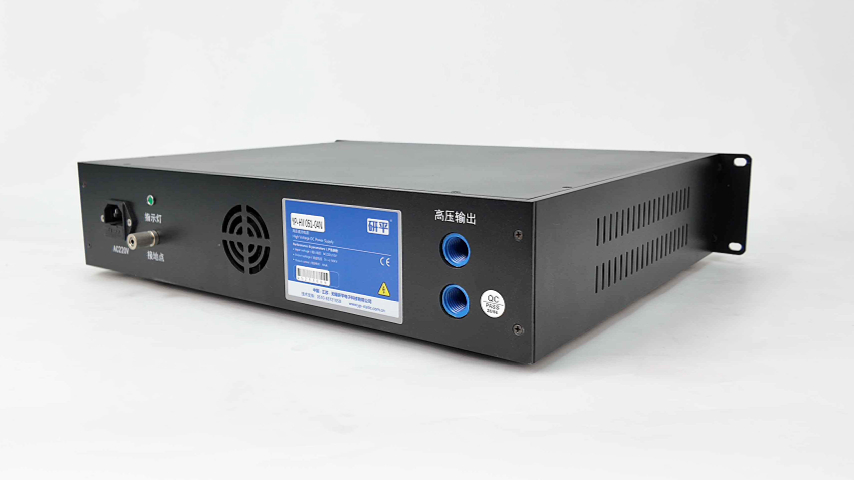

50KV Electrostatic Generator

YP-HV051-04P/N

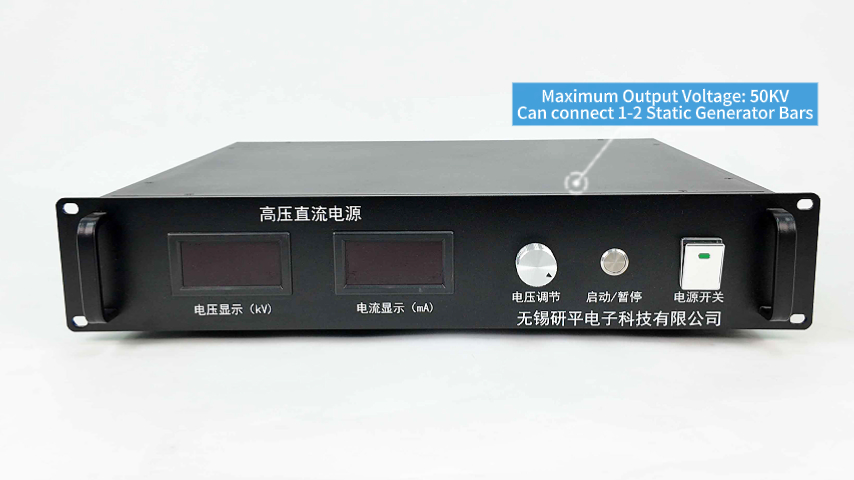

It provides a maximum positive/negative high-voltage output of 50KV and 4mA

Application Field

  • Lithium Battery Industry

  • Textile Industry

  • Soft Packaging Industry

Product Characteristics

1     Built-in multiple protection mechanisms such as short circuit, overvoltage, and overcurrent protection. These mechanisms guarantee that the device automatically stops the output when abnormal situations arise, protecting the circuit from harm and prolonging the device's service life.

2     Users can make flexible adjustments to the output voltage to realize precise control.

3    Small size reduces the number of external components, improves stability, and at the same time reduces energy consumption and noise.

4     The compact design makes installation and maintenance easy, and it is suitable for various spatial layouts

Performance Parameter

  • Model Parameters
    YP-HV50KV
  • Input Voltage
    AC220V±10%/50Hz
  • Output Voltage
    Adjustable from 0 to ±50KV
  • Output Current
    ≤1mA
  • Ripple Voltage
    -
  • Output Stability
    -
  • Operating Temperature
    -10-50℃
  • Storage Temperature
    -40-85℃
  • Operating Humidity
    20-85%RH
  • Temperature Coefficient
    ≤0.1%/℃
  • Time Drift
    ≤100PPM/h (after 30 minutes of warm-up after power-on)
  • Weight
    7500g

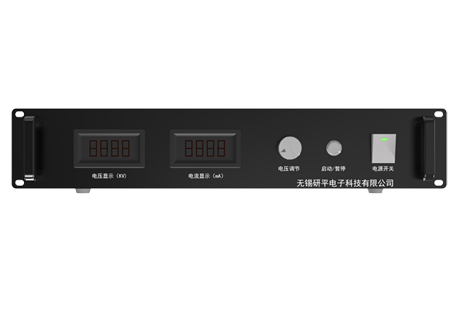

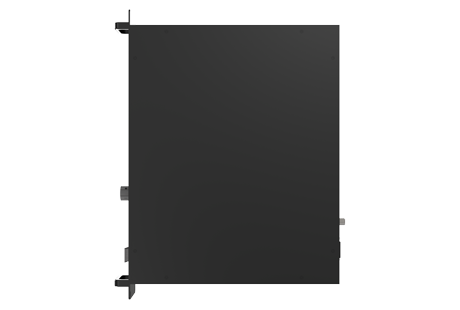

Product Size
