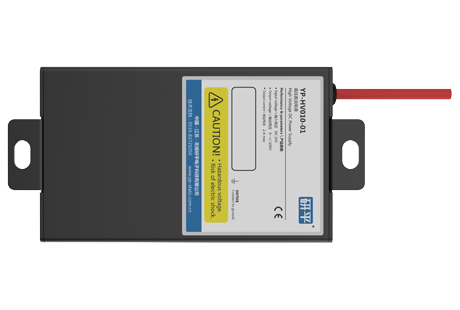

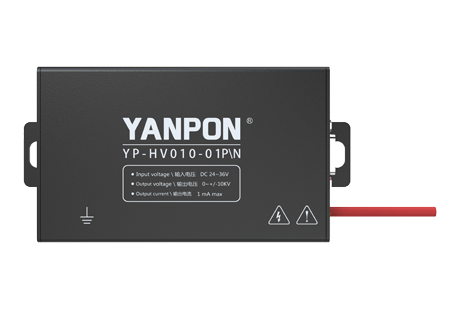

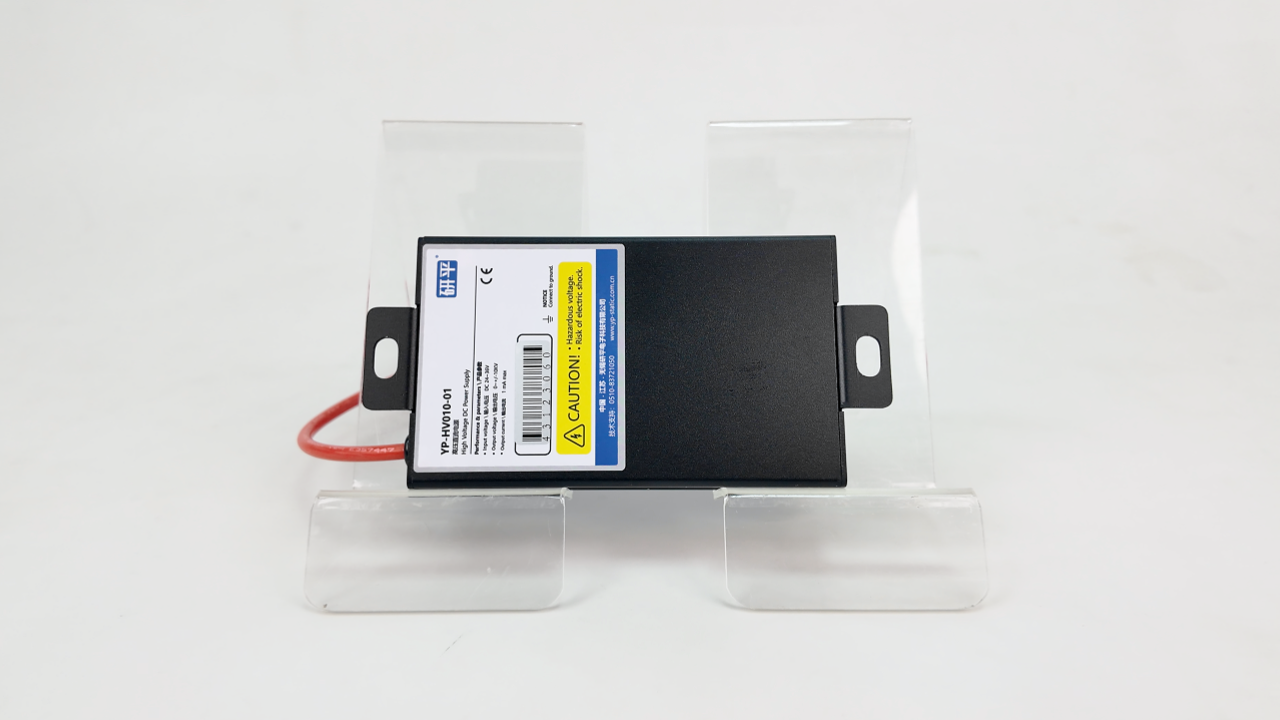

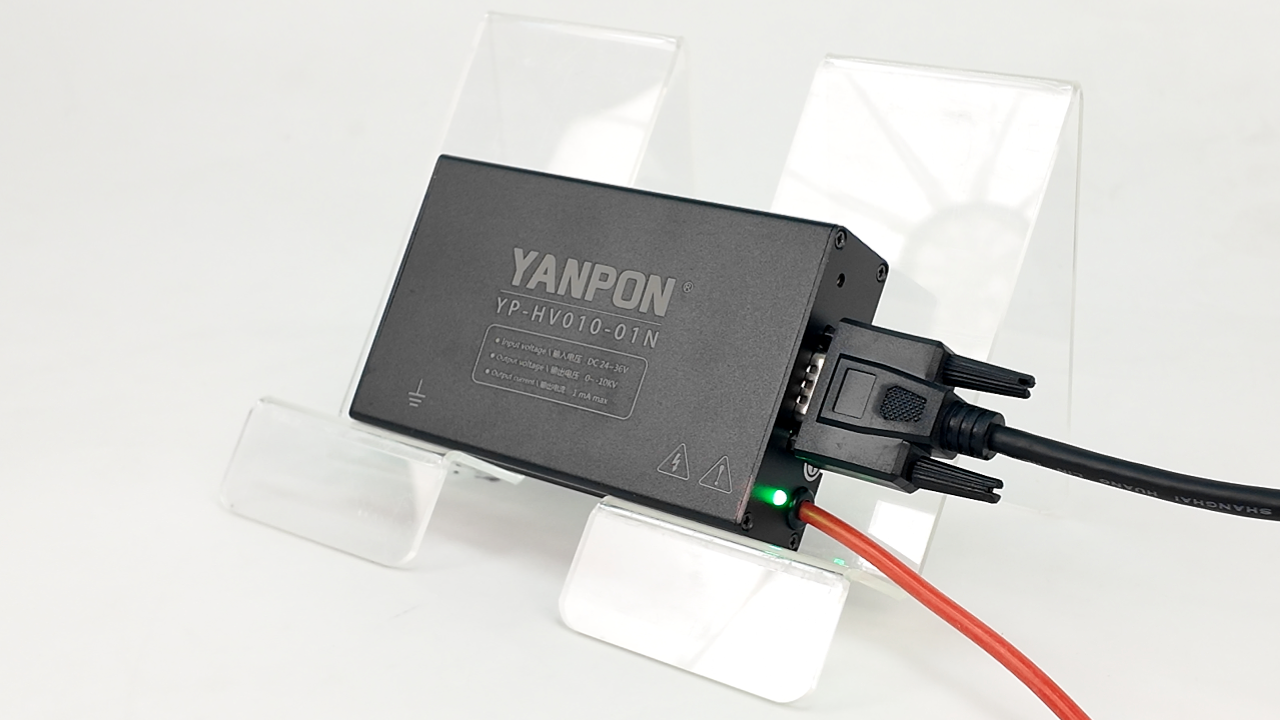

10KV Electricity Generator

YP-HV010-01P/N
It provides a maximum positive/negative high-voltage output of 10KV and 1mA

Application Field

  • Semiconductor Industry

  • Lithium Battery Industry

  • Electronics Industry

  • Soft Packaging Industry

Product Characteristics

1    Built-in multiple protection mechanisms such as short circuit, overvoltage, and overcurrent protection. These mechanisms ensure that the device automatically cuts off the output in abnormal situations, preventing damage to the circuit and extending the service life of the device.

2     Users can flexibly adjust the output voltage to achieve precise control.

3    Compact size reduces the number of external components, enhances stability, and at the same time lowers energy consumption and noise.

4  The compact design facilitates easy installation and maintenance, making it suitable for various spatial layouts.

5    It features three control functions: external control, remote control, and local control, and can be directly connected to a PLC control unit.

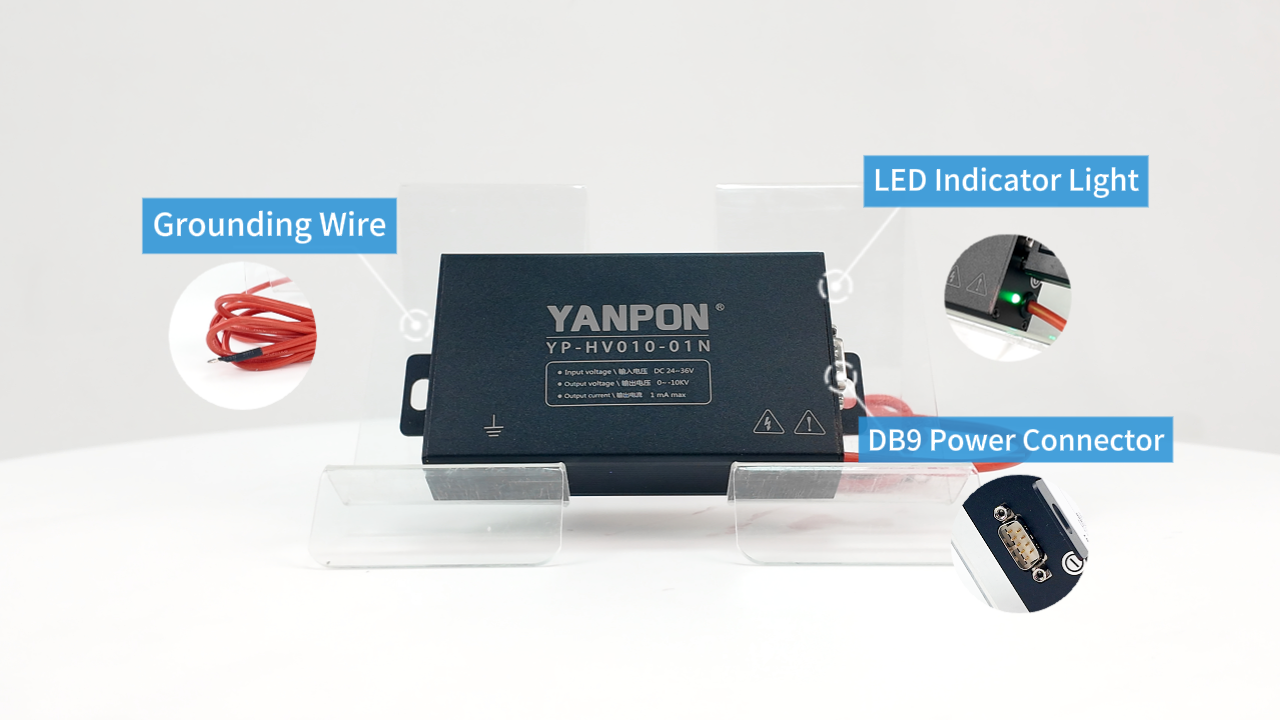

6   Equipped with two high-voltage output ports, it can be connected to two ion generating rods.

Performance Parameter

  • parameter/Version
    YP-HV10KV
  • Input Voltage
    DC24-36V
  • Output Voltage
    Adjustable from 0 to 10KV
  • Output Current
    ≤1mA
  • Ripple Voltage
    ≤200ppm
  • Output Stability
    ≤0.4%
  • Operating Temperature
    0-55℃
  • Storage Temperature
    -
  • Operating Humidity
    20-85%RH
  • Temperature Coefficient
    -
  • Time Drift
    -
  • Weight
    410g

Product Size
