Application Field
-
Semiconductor Industry
-
Lithium Battery Industry
-
Electronics Industry
Product Characteristics
1 Intelligent ion fan with built-in ion balance detection.
2 With short-circuit protection function, communication can connect to PLC or external enable switch.

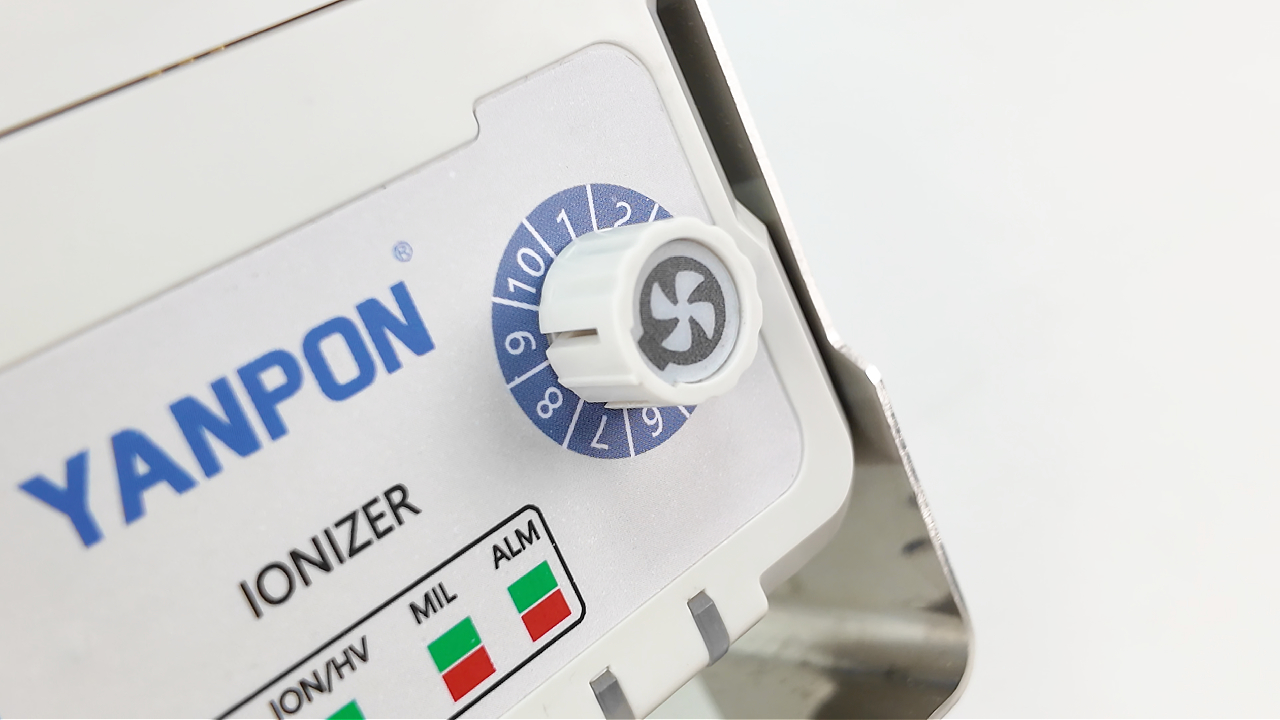

3 Replaceable electrode pin cartridge, 10-speed air volume adjustment.
4 Rich functions such as 6 types of abnormal alarms, its own ion balance can meet any scene use, with ion balance capability of ±5V.
Performance Parameter

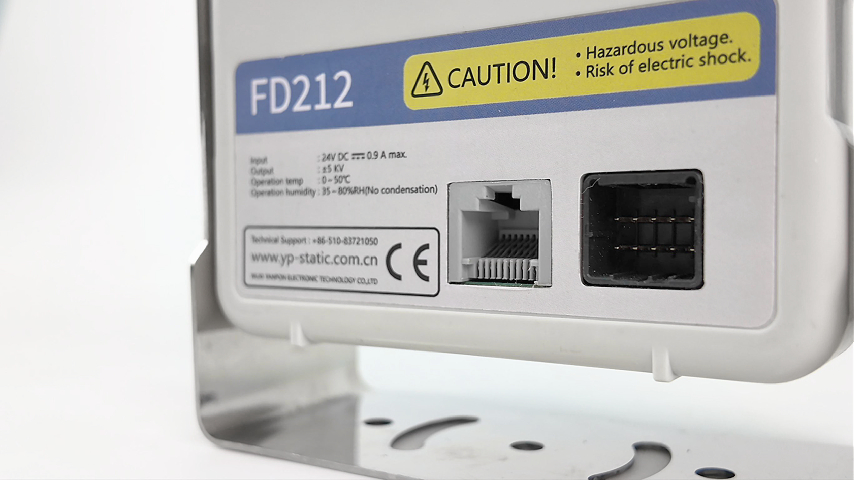

- parameter/VersionFD212
- Input voltageDC24V±10%
- Input voltage＜10W
- Input current＜0.9A
- Working voltageDC±5KV
- Charge elimination range750*300mm
- Charge elimination range≤1S（300mm处）
- Ion balance±5V以下
- Ozone concentration1.8m³/min
- Operating temperature / humidity≤70dB
- Ion generation mode≤0.05ppm（150mm 处）
- Input current0-50℃/30-70RH%
- Working voltageCorona discharge
- Voltage application modeSteady DC
Working Mode
Electrification Effect
Product Size
