Application Field
-
Semiconductor Industry
-
Lithium Battery Industry
-
Electronics Industry
Product Characteristics
1 Compact shape, easy to install.
2 With power-on self-cleaning function.
3 Ion balance detection, short-circuit protection function.
4 Fast charge elimination speed, ion balance ±10V.
5 Stepless air volume adjustment.
Performance Parameter
- parameter/VersionFD211
- Input voltageDC24V
- Input voltage＜12W
- Input current＜0.5A
- Working voltageDC±5KV-±7.5KV
- Charge elimination range750*300mm
- Charge elimination range≤2S（300mm处）
- Ion balance±10V以下
- Air volume / Air speed≤85CFM
- Audio noise≤60dB
- Ozone concentration≤0.05ppm（150mm处）
- Operating temperature / humidity0-50℃/30-70RH%
- Ion generation modeCorona discharge
- Voltage application modeSteady DC
Working Mode
Electrification Effect

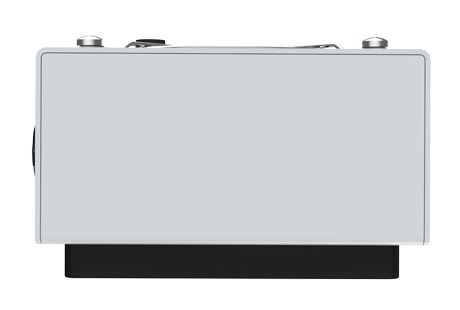

Product Size
