Application Field
-
Semiconductor Industry
-
Lithium Battery Industry
-
Electronics Industry
-
Soft Packaging Industry
Product Characteristics

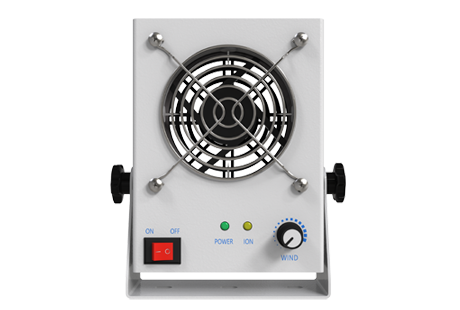

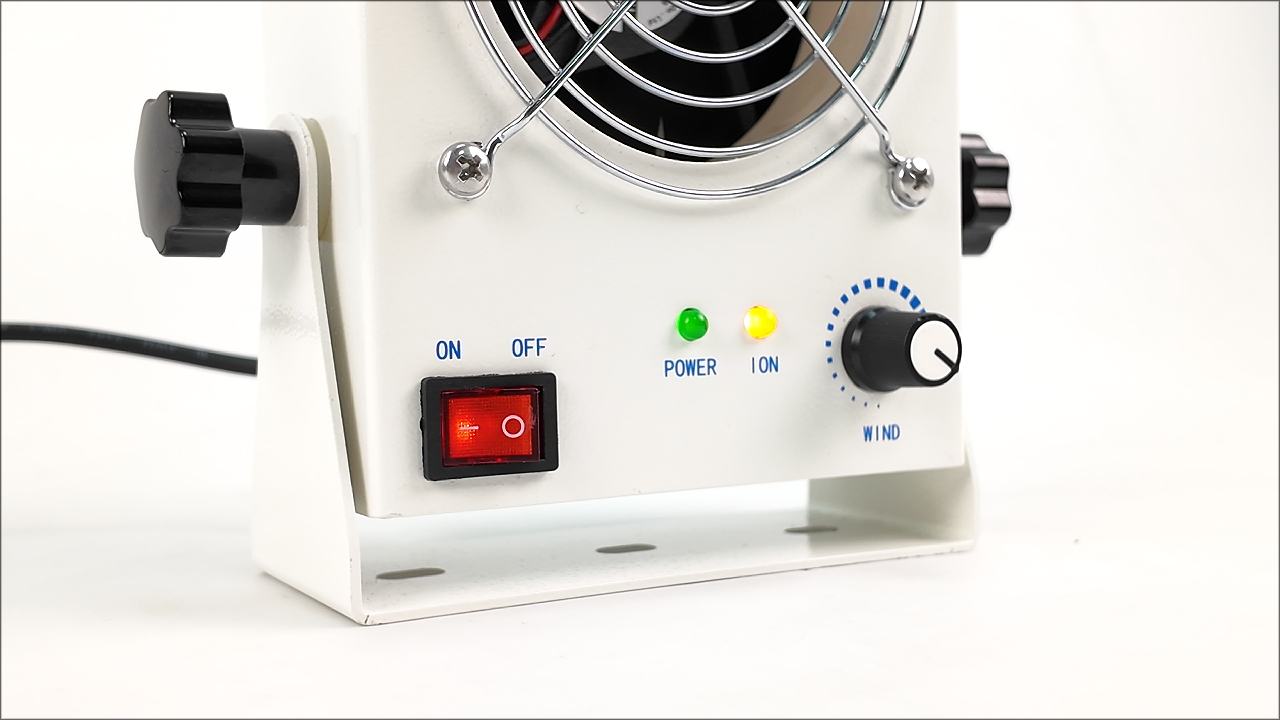

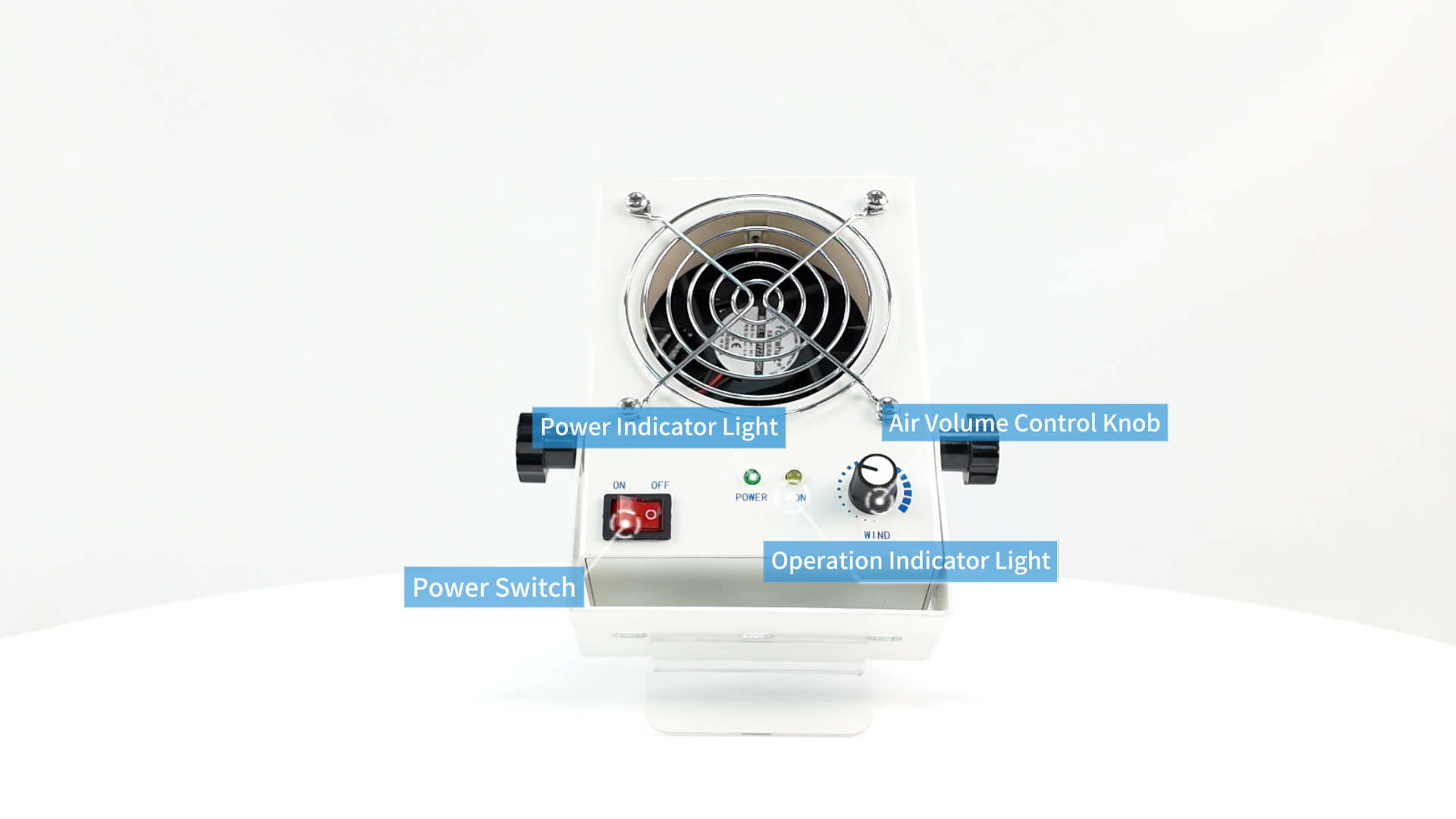

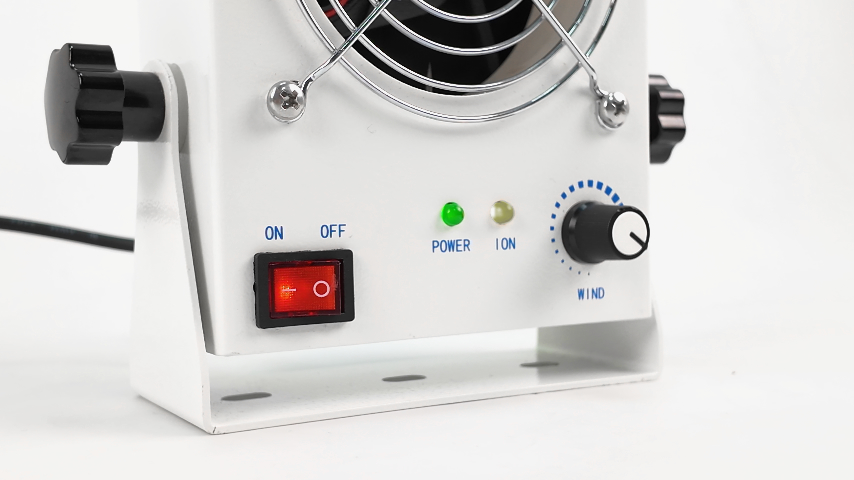

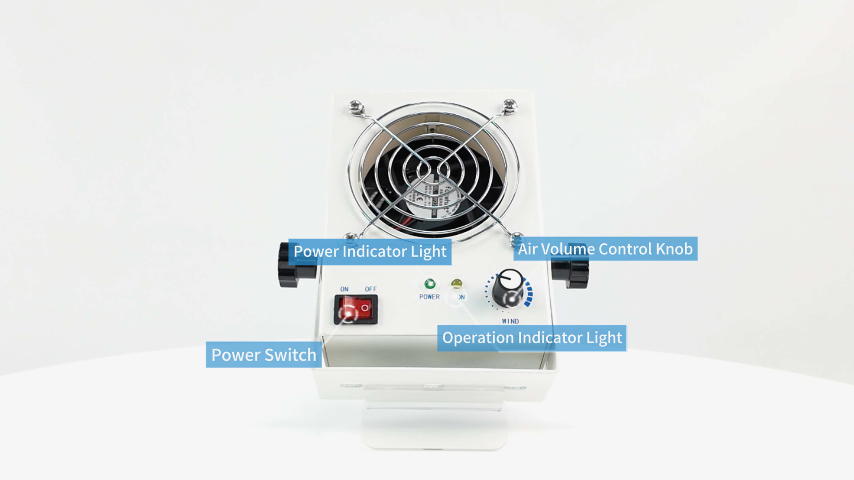

1 Sensitive adjustment knob for multi-level airflow control
2 LED indicator with 3 types of abnormal alarms for real-time operation status monitoring

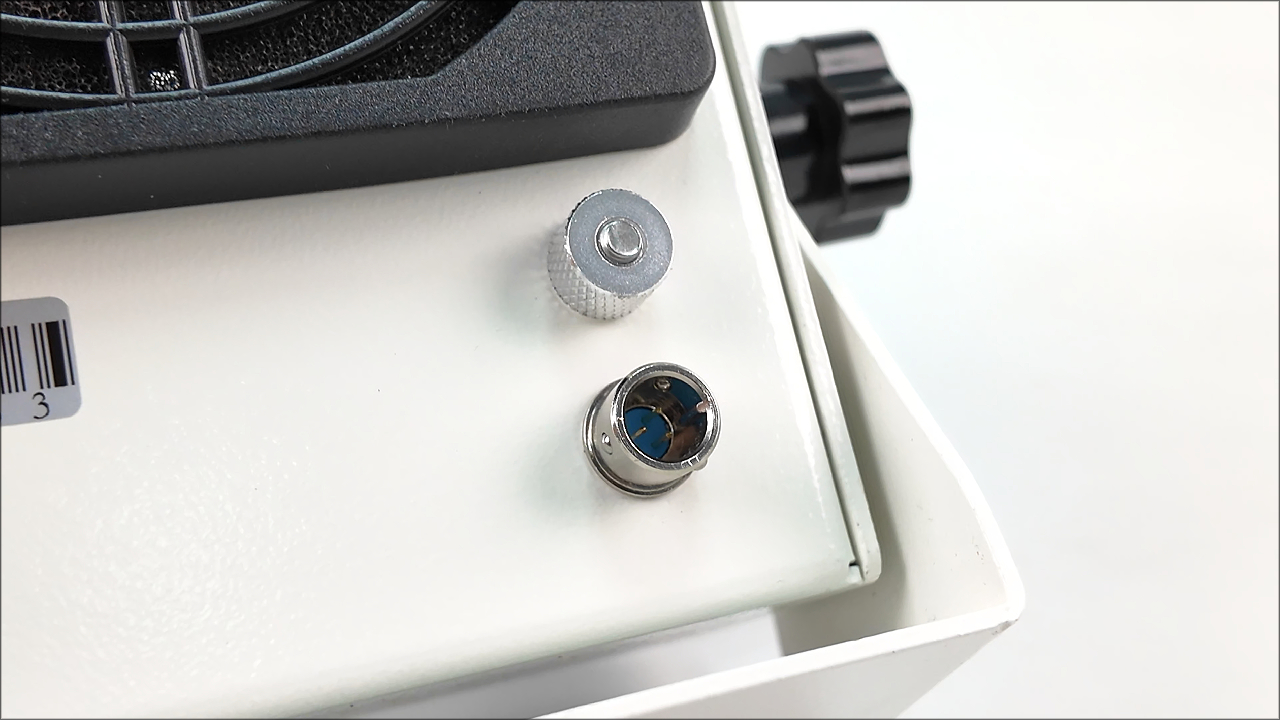

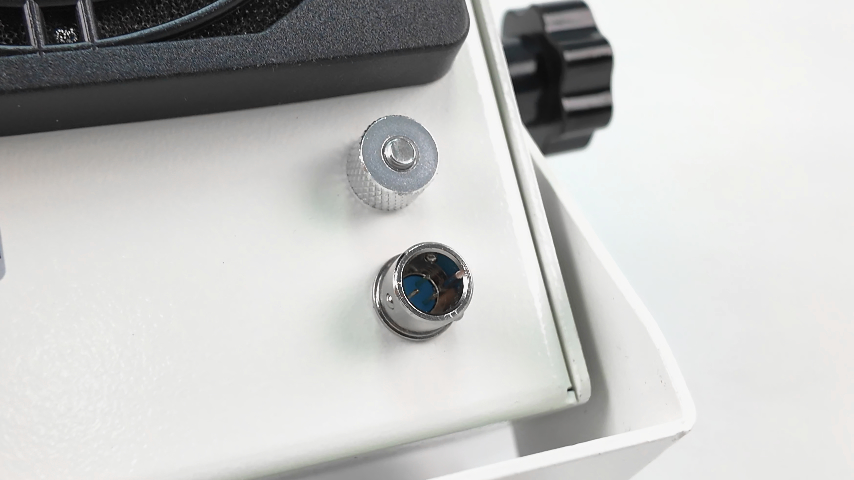

3 3-pin aviation plug cable interface for easy and error-free installation
4 Built-in reverse power connection protection to avoid equipment damage
Performance Parameter
- ModelFD201
- Input VoltageDC24V±10%
- Input Current＜350mA
- Input Power＜8W
- Operating Voltage±DC4-7.5kV
- Ion Generation MethodCorona Discharge Type
- Voltage Application MethodSteady DC
- Emission ElectrodeTungsten Needle
- Static Elimination Range750*300mm （at maximum airflow）
- Static Elimination Speed＜2s （at 300mm, maximum airflow）
- Ion Balance≤±20V （at 300mm）
- Audio Noise＜65dB （at 300mm）
- Operating Temperature0℃-50℃
- Operating Humidity35-80%RH （non-condensing）
- Overall Dimensions14511050mm （bare unit）
- Housing MaterialSheet Metal
- Component Units①3-core aviation plug power cable ②Bracket
- FunctionAdjustable Airflow
- Function3 types of abnormal alarms
- FunctionReverse power connection protection
Working Mode
Product Size
