Product Characteristics
1 A highly integrated static online monitoring system
2 Equipped with functions including real-time display, network connection for backend synchronization, RS485 communication, alarm threshold setting, alarm output, historical data review, and supports data export
3 Meets the static control needs of single or multiple devices
Performance Parameter
- ModelYC-S416
- Display Screen7-inch TFT Color Screen, Resolution 800*480
- Dimensions（mm）267(L)×82(W)×175(H)
- Weight2220g
- Touch Control MethodResistive Touch Control
- Detection RangeAutomatically Recognized Based on Sensor Range
- Operating VoltageDC24V±20%
- Operating CurrentStandalone Current ＜300mA. Current with 8 Sensors ＜600mA. Current with 16 Sensors ＜900mA
- Operating Ambient Temperature-10 ℃ to 50 ℃
- Operating Ambient Humidity10～65％RH Relative Humidity, No Condensation
- Detection Rate100ms/Time - 5000ms/Time

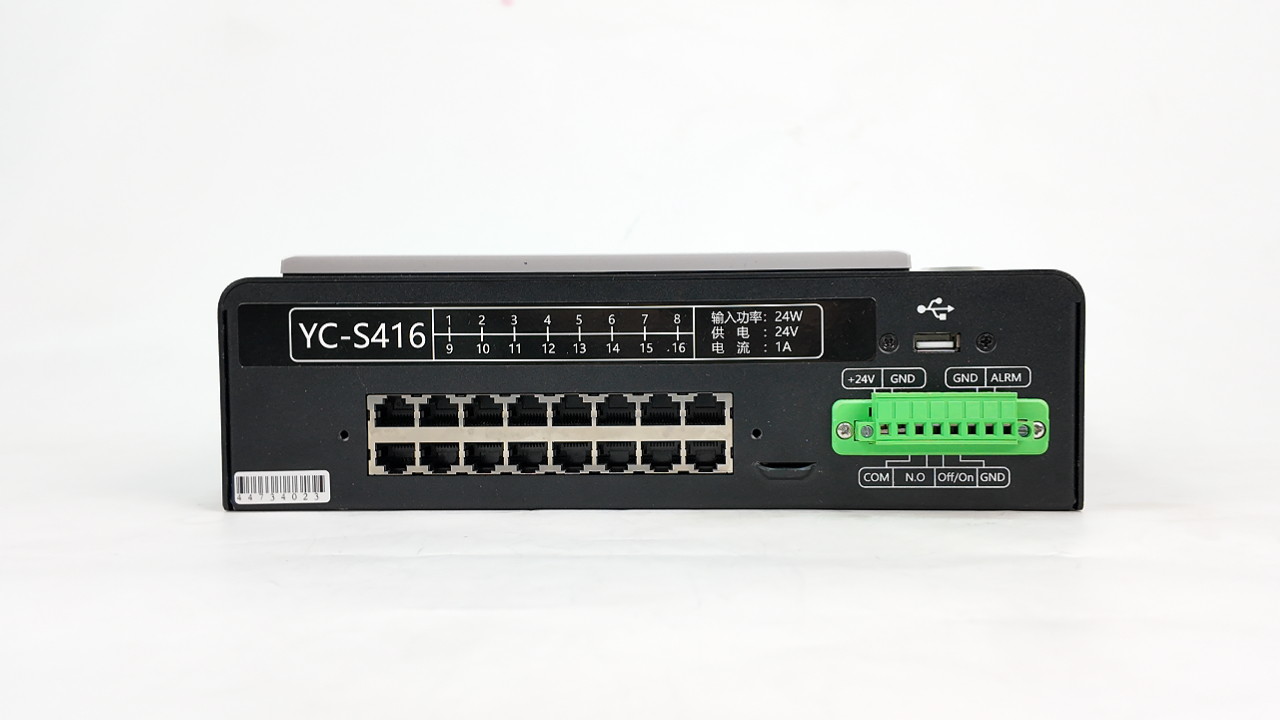

- Number of Sensor Connections1-16 Units
- Sensor Connection Wire Length＜100m
- Data Storage Time≥6 Months
- Alarm Output ModeAudio-Visual Alarm, Passive Output, 24V Output
- Data Export MethodUSB Flash Drive Export
- Communication InterfaceRS485
- Voltage Analog Output0.5V-4.9V
- Temperature and Humidity DetectionOptional Function
- Current Analog Output4-16mA（Optional Function）

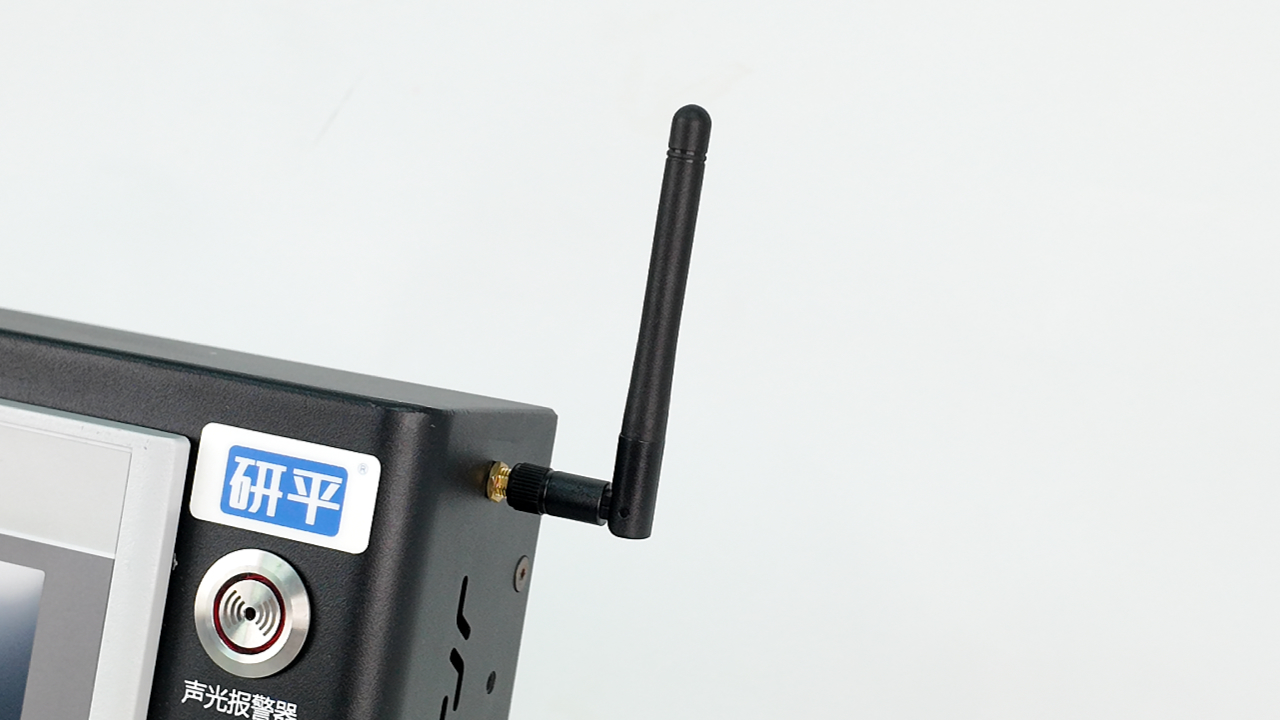

- IoT FunctionOptional Function
- Current OutputOptional Function

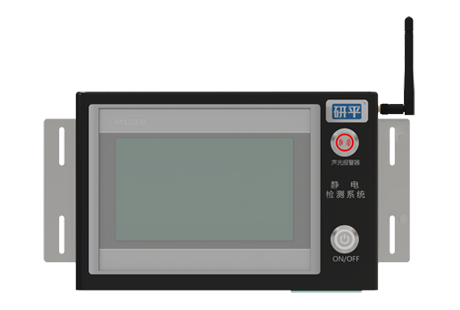

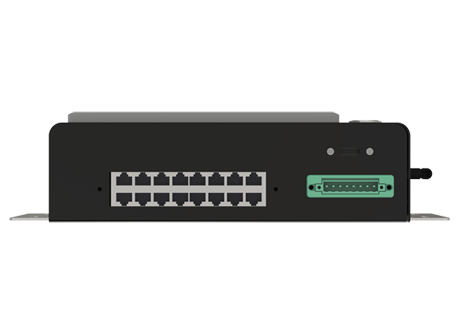

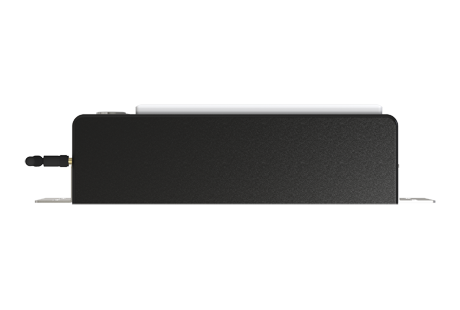

Product Size
